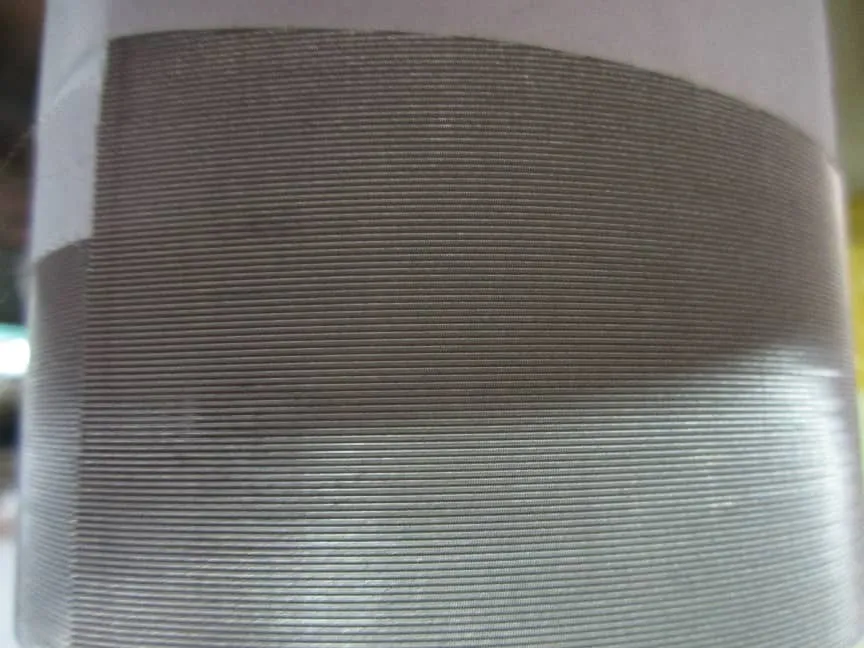

Metal Dutch Weave Wire Mesh

Metal dutch weave wire mesh is an ultra-dense filter mesh woven from high-precision stainless steel wire (such as 304/316L) through special processes such as plain weave and twill weave. It has corrosion resistance, high temperature resistance, and high-precision filtering characteristics. It is specially designed for the harsh environment of the petroleum, chemical, pharmaceutical and aerospace industries and supports customized specifications.

Send Email Download

Product Description

The metal dutch weave wire mesh adopts a differentiated design of warp and weft wire diameters (the warp wire is usually thicker than the weft wire). Through plain, twill, bamboo flower or contrast weaving technology, it forms a finer filtration density than the square hole mesh (up to 1600 mesh), achieving micron-level particle retention. The materials include SUS304, 316L, pure nickel wire, etc., ensuring stable performance in acid, alkali and high temperature environments, and increasing the life by more than 30%.

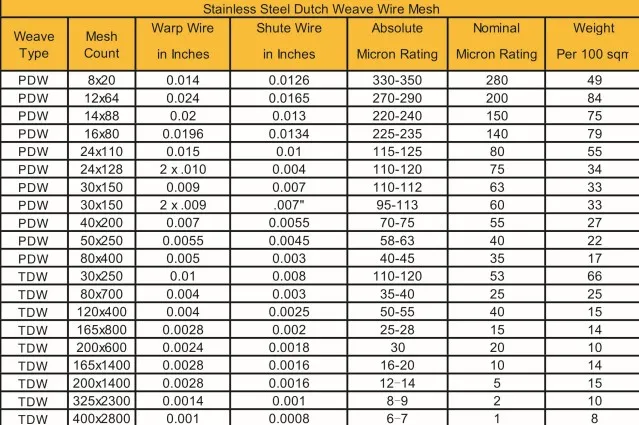

Type	Mesh count	Wire diameter(mm)	Hole size(um)	Roll Width
Plain Dutch weave	40-300	0.550.42-0.110.039	32-260	1-1.6m
Twill Dutch weave	80-1600	0.280.2-0.030.018	3-38	1-1.6m
Support customized mesh (such as 12×64 to 500×3200 mesh), wire diameter combination and special alloy material

Product Features

Precision filtration

pore size error ≤±3μm, filtration accuracy up to 3 microns (such as 1600 mesh model), far exceeding the limit of square mesh;
High efficiency flowability

precise control of opening rate (20%-70%), flow loss is lower than traditional filter;

Strong environmental adaptability

acid and alkali resistance (pH 1-14), high temperature resistance (≤850℃), tensile strength increased by 50%;
Long life design

wear-resistant wire diameter structure + anti-oxidation material, reducing replacement frequency.

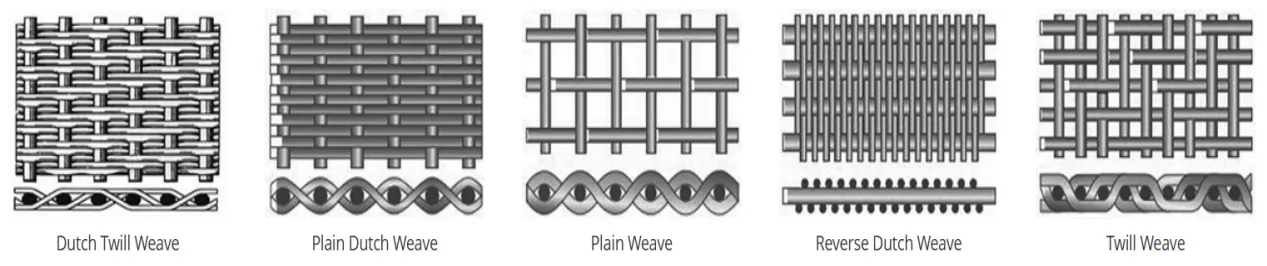

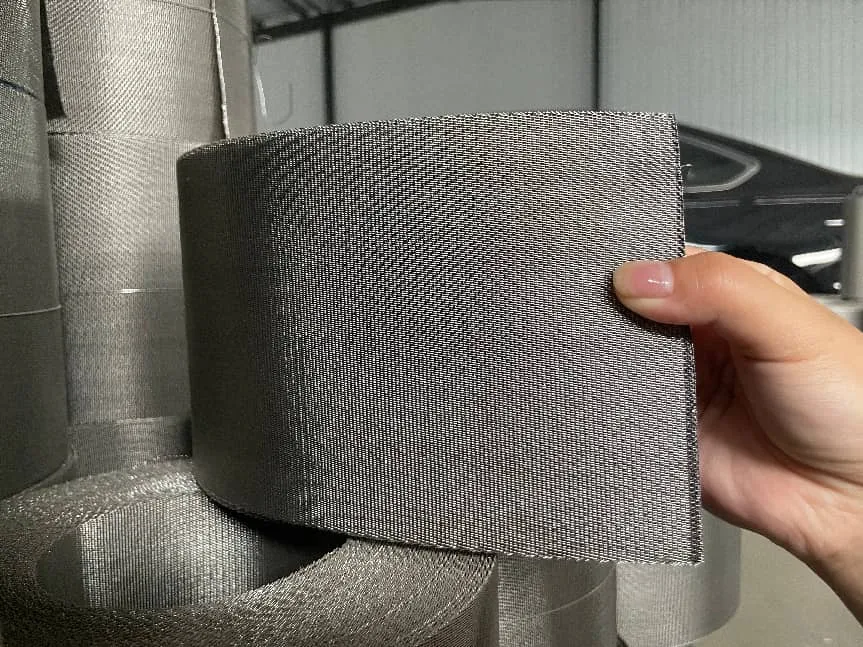

Product Woven Type

Metal Dutch Weave Wire Mesh

Product Usage

Industrial filtration

fuel filter, vacuum pump filter element, liquid sterilization (pharmaceutical/GMP certification), food-grade screening, plastic extrusion filtration;

Energy and chemical industry

petroleum mud net, chemical fiber spinneret, electroplating pickling tank protection;

High-end field

spacecraft fuel filtration, nuclear industry media separation, high-purity electronic chemical purification;

Architecture and decoration

building curtain wall light-transmitting layer, insect-proof ventilation grille (can be combined with laser cutting to customize the pattern).

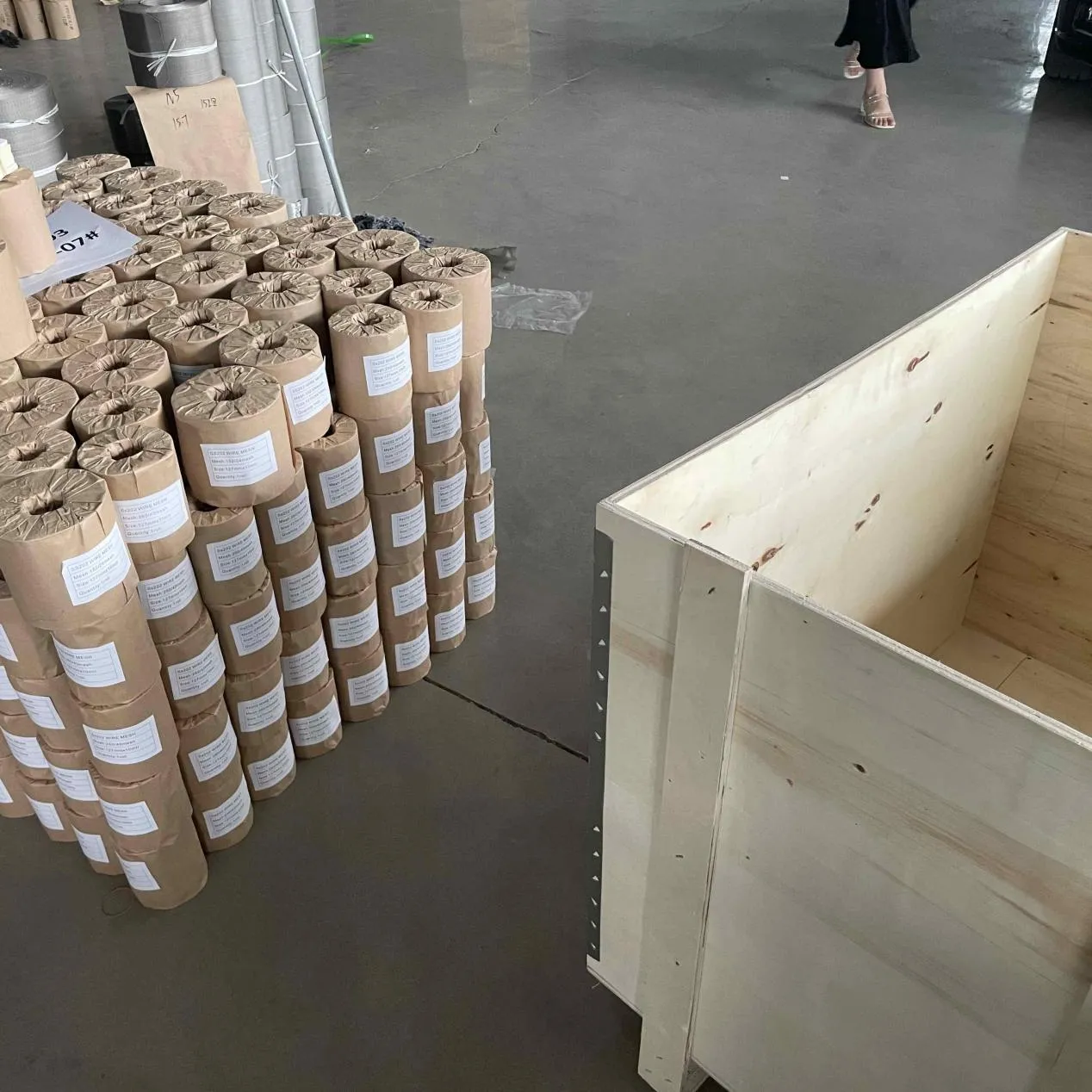

Product Package

Standard form: roll (covered with anti-scratch PE film, diameter 80cm) or sheet (cut to custom size);

Export protection: wooden box + bubble film, corner protection on the edges, moisture-proof and pressure-proof;

Minimum order: 50 square meters (roll), sheets cut on demand;

Logistics support: global sea/air transportation, providing DDP, FOB and other trade terms.

Product Package
Product Package

Product Package

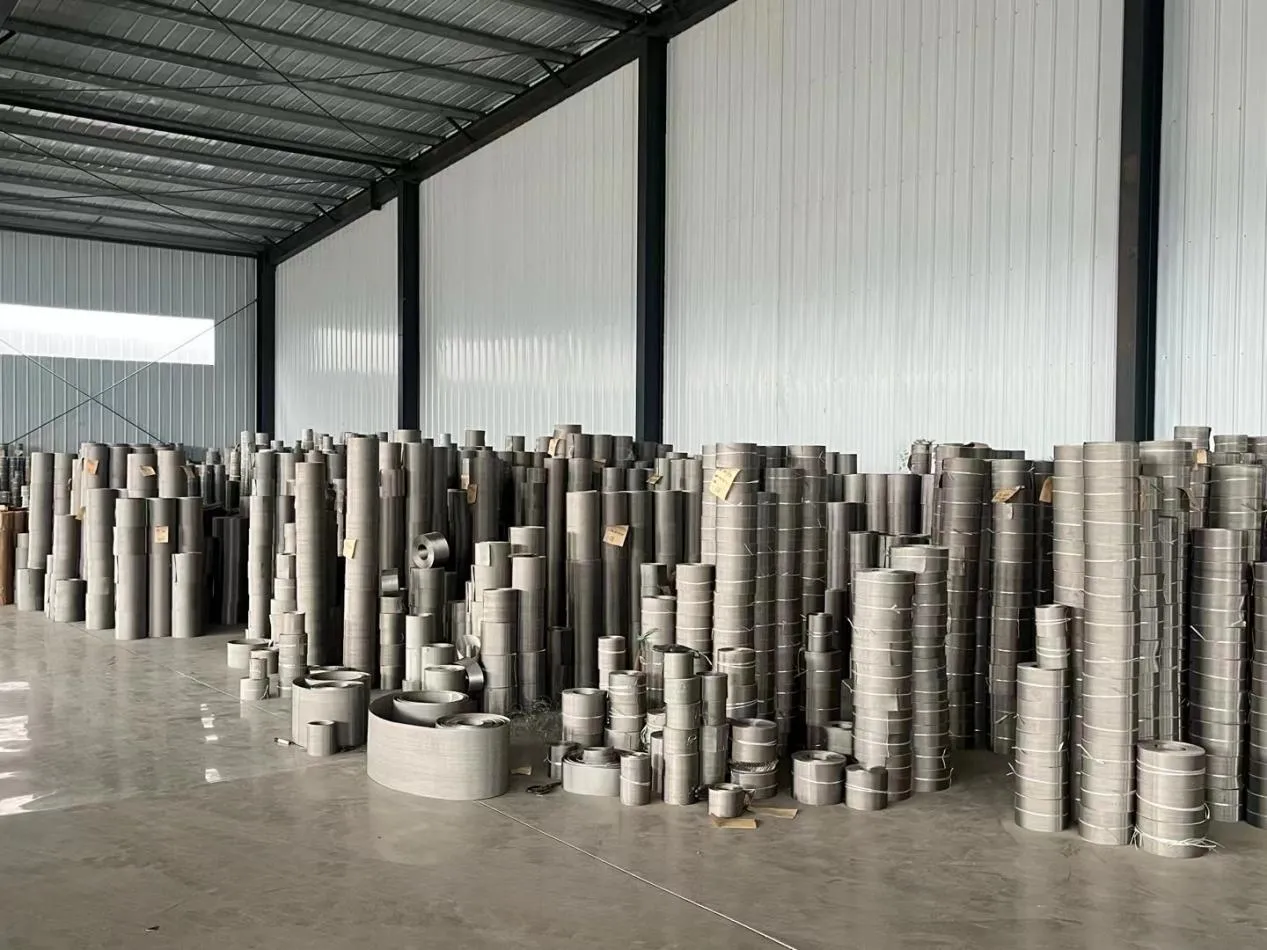

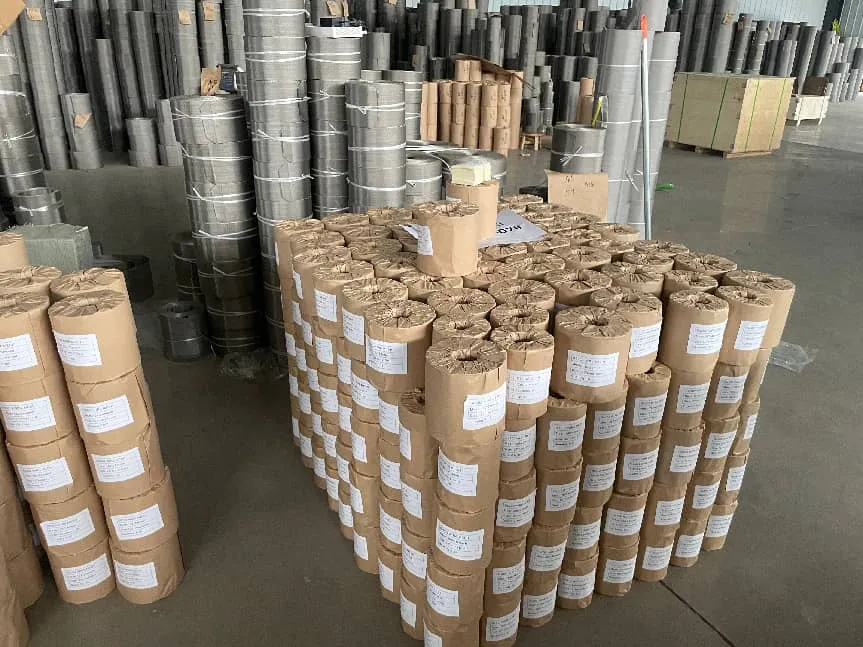

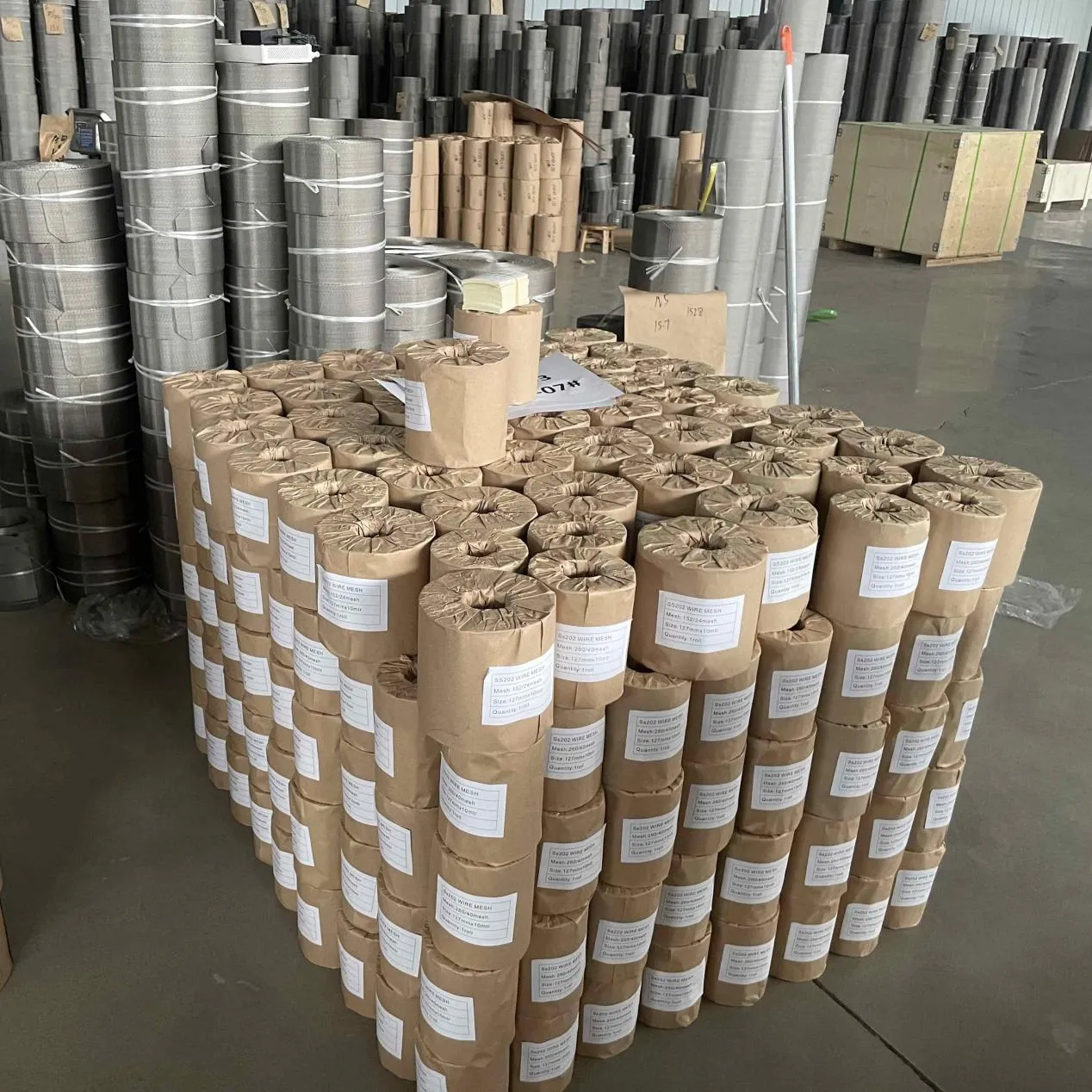

Our stock

FAQ

Are you a manufacturer or trader?

We are a professional manufacturer of wire mesh products. Anping County Jinzehong Wire Mesh Products Co., Ltd. was established in 2000 and has grown into a comprehensive enterprise integrating production, R&D, and sales.

What can you buy from us?

We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.

What is your delivery time?

We keep sufficient inventory, and the delivery time for stock materials is one week. Special customized products will provide an accurate delivery time based on quantity and technical requirements.

How do you ensure product quality?

We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.

Can you provide samples?

Yes, we would like to provide samples for your testing.

What Is Metal Dutch Weave Wire Mesh?

Metal Dutch weave wire mesh is a specialized woven wire mesh designed with a unique weaving pattern that combines thicker warp wires (vertical) with finer weft wires (horizontal). This construction produces a tightly packed mesh with excellent strength, stability, and very fine filtration capabilities. Unlike plain weave or twill weave mesh, the Dutch weave offers higher density and lower permeability, making it suitable for separating very fine particles while still maintaining mechanical durability. Typically made from stainless steel or other corrosion-resistant alloys, Dutch weave wire mesh is capable of withstanding high pressures, harsh chemicals, and extreme temperatures. Because of its precision and strength, it is commonly used in filtration and separation applications, including liquid-solid separation, gas filtration, and hydraulic systems. The tight weave also creates a smooth surface that resists clogging and is easier to clean compared to other mesh types. In short, metal Dutch weave wire mesh is a high-performance, durable material designed for industries that demand accurate filtration and long-lasting service in challenging environments.

What Are The Applications Of Metal Dutch Weave Wire Mesh?

Metal Dutch weave wire mesh is widely used in industries where precision filtration, durability, and strength are essential. In the chemical and pharmaceutical industries, it is used for filtering fine powders, liquid chemicals, and solvents, ensuring purity and product consistency. In the petroleum and oil refining sectors, Dutch weave mesh is applied in hydraulic filters, fuel filtration, and pressure systems, where it withstands high operating pressures. In water treatment plants, it serves as an effective medium for removing impurities and micro-particles from both industrial and drinking water. In the food and beverage industry, stainless steel Dutch weave mesh is commonly used for filtering oils, syrups, and other liquids, as it is hygienic and resistant to contamination. It is also applied in aerospace and automotive sectors for gas filtration, air intake systems, and precision machinery protection. Another major application is in plastic extrusion processes, where Dutch weave mesh ensures uniform material flow and prevents contamination in final products. These versatile uses highlight its importance across industries that prioritize precision, safety, and efficiency.

How Durable And Efficient Is Metal Dutch Weave Wire Mesh?

Metal Dutch weave wire mesh is engineered for exceptional durability and efficiency. Made from high-grade stainless steel or alloy materials, it provides outstanding resistance to corrosion, rust, and wear, making it suitable for long-term use in harsh industrial conditions. The unique weaving design ensures superior strength and stability, preventing deformation under high pressure or stress. Its fine filtration capacity allows it to capture extremely small particles while still maintaining good flow rates, which increases efficiency in filtration systems. Unlike other meshes that may clog easily, Dutch weave mesh is designed to reduce blockages, extending its service life and lowering maintenance costs. The material is also reusable, as it can be cleaned and reinstalled without losing performance. From a cost-effectiveness perspective, investing in Dutch weave mesh reduces downtime, replacement frequency, and operational disruptions. Additionally, its recyclability makes it a sustainable choice in industries moving toward eco-friendly solutions. In conclusion, metal Dutch weave wire mesh offers a reliable combination of strength, precision, and long-lasting efficiency, making it one of the most trusted materials in advanced filtration and separation applications.
