Stainless Steel Filter Mesh: notes from the factory floor and the field

If you work in filtration, you already know the unsung hero is the mesh. To be honest, I’ve seen lines saved by a timely screen swap and, occasionally, ruined by choosing the wrong weave. The Stainless Steel Filter Mesh coming out of Anping (South Road, 500 meters North of Houzhangzhuang, Hengshui, Hebei) has been getting buzz for a reason: consistent aperture, stable metallurgy, and—surprisingly—clean weld edges that don’t fray under cyclic load.

What’s trending

Two shifts I keep hearing about on plant tours: finer Dutch weaves for high dP polishing (think pharma solvents) and a swing to 316L/904L for chloride-heavy cycles. Also, food processors are requesting electropolished mesh for easier CIP—yes, it costs a bit more, but downtime costs more.

Key specifications (typical)

Alloys	304, 304L, 316, 316L (optional: 310S, 904L)
Weaves	Plain, Twill, Dutch, Twill Dutch, Reverse Dutch
Mesh Count	2–400 mesh (custom up to ≈635 mesh)
Wire Diameter	0.018–2.0 mm (≈0.0007–0.079")
Aperture / Open Area	5–10,000 μm; 10–80% open area (real-world use may vary)
Finishes	Annealed, passivated, degreased, electropolished
Standards	ASTM E2016, ISO 9044, ISO 4783 series

How it’s made (short version)

• Materials: melt-certified SS wire (304/316L) per heat lot; MTRs recorded.
• Weaving: shuttle looms with laser aperture checks; plain for strength, Dutch for fine filtration.
• Heat treatment: controlled anneal to relieve stress and stabilize aperture.
• Finishing: alkaline wash, passivation (per ASTM A967), optional electropolish for CIP.

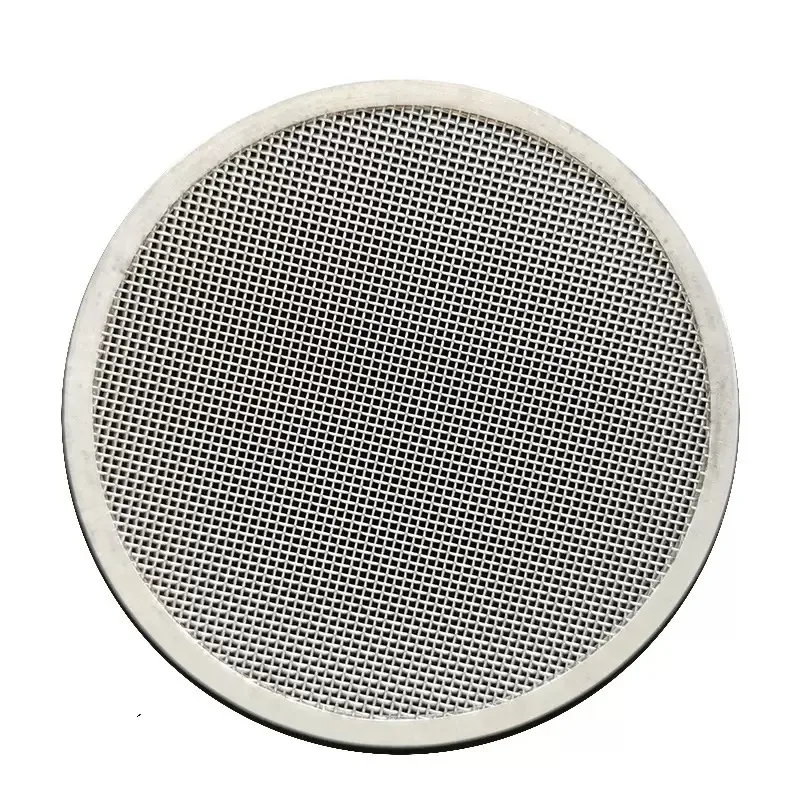

• Fabrication: slit to width, plasma/laser cut discs, spot/TIG seam welding for cartridges.
• Testing: mesh count per ASTM E2016; bubble point per ASTM F316; salt spray (ASTM B117) for comparative resistance.
• Service life: ≈1–5 years in aggressive media; up to 10+ in mild duty with correct CIP.
• Industries: chemicals, food & beverage, pharma, oil & gas, water, pulp, battery slurries.

Field notes and mini case studies

• Beverage plant (EU): swapped from 304 plain 80 mesh to 316L Dutch twill 200×600; ΔP dropped ≈12% and CIP time fell by ~18%. QA reported fewer fines in final fill. Customer said “finally, stable apertures.”

• Lithium slurry line (APAC): 40 μm-rated Stainless Steel Filter Mesh cartridge with TIG-welded seam; after 9 months, permeability loss

Why it works

• Dimensional stability: tight tolerances per ISO 9044, so scale-up is predictable.
• Cleanability: smoother wire and good passivation mean easier CIP/SIP.
• Corrosion resistance: 316L and, when needed, 904L for chlorides.

Customization

Custom cuts (discs, cones, pleats), multilayer sintered packs, edge-banded screens, and gasketed cartridges. Aperture mapping reports and C of C on request. Food-contact declarations (EU/US) and RoHS/REACH available.

Vendor snapshot (what buyers compare)

Vendor	Mesh Range	Alloys	Lead Time	Certs	Price
Jinzehong (Anping)	2–635	304/316L/310S/904L	≈7–15 days	ISO 9001, C of C, MTRs	Mid
Generic Importer	10–300	304/316	≈20–40 days	Basic QC	Low
Local Fabricator	Custom	304/316L	≈3–10 days	Varies	Mid–High

Compliance and testing quick hits

• Fabric per ASTM E2016; tolerances verified with calibrated optical systems.
• Bubble point and gas flow per ASTM F316; we’ve seen repeatability within ±5%.
• Optional salt spray (ASTM B117) for comparative screening; not a direct service-life predictor, I guess, but useful.
• Food-contact declarations aligned to EU Framework and typical US practice; confirm per application.

Customer voice: “For our syrup filtration, the Stainless Steel Filter Mesh shed less metal fines than prior screens and cleaned faster. Small thing, big savings.”

References

1. ASTM E2016 – Standard Specification for Industrial Woven Wire Cloth. https://www.astm.org/e2016
2. ISO 9044 – Industrial wire screens and woven wire cloth. https://www.iso.org/standard/16573.html
3. ASTM F316 – Pore Size Characteristics of Membrane Filters by Bubble Point. https://www.astm.org/f0316
4. ASTM B117 – Standard Practice for Operating Salt Spray Apparatus. https://www.astm.org/b0117
