Are you a manufacturer or trader?

We are a professional manufacturer of wire mesh products. Anping County Jinzehong Wire Mesh Products Co., Ltd. was established in 1968 and has grown into a comprehensive enterprise integrating production, R&D, and sales.

What is your delivery time?

We keep sufficient inventory, and the delivery time for stock materials is one week. Special customized products will provide an accurate delivery time based on quantity and technical requirements.

Can you provide samples?

Yes, we would like to provide samples for your testing.

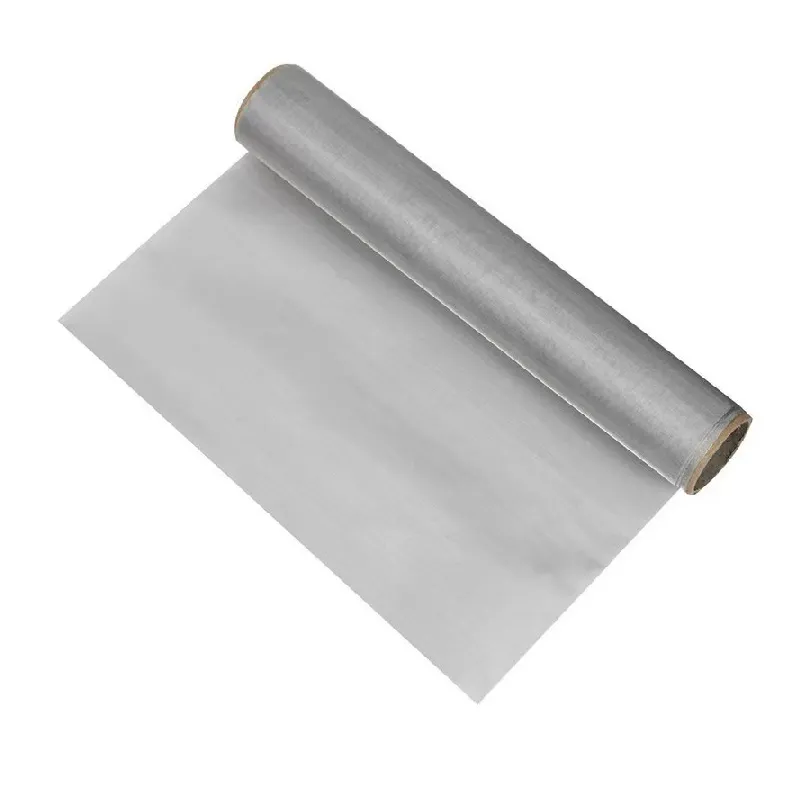

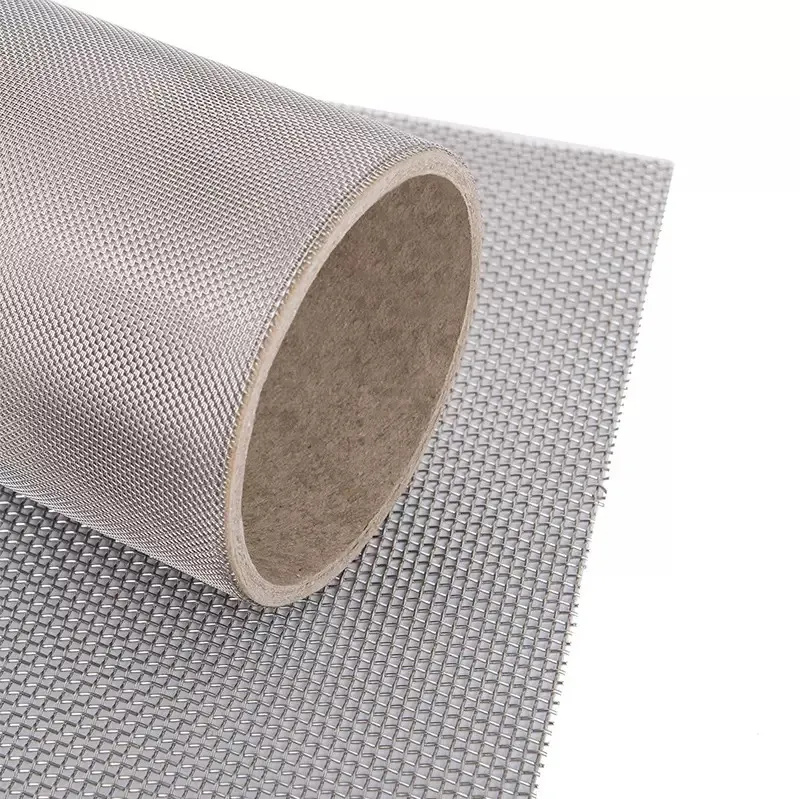

Stainless Steel Filter Mesh

Q: What can you buy from us?

We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.

Q: How do you ensure product quality?

We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.

Material: 304, 304L, 316, 316L, 2205 duplex steel, 310S, Monel alloy, etc

Shape: round (diameter 5-600 mm), rectangular, waist-shaped, oval and customized shapes

Mesh number and aperture: covering 20-635 mesh, the highest precision is 1μm (635 mesh)

Usage: Petrochemical/Chemical Industry, Food and Medicine, Environmental Protection, Chemical Fiber/Plastic, Electronic Energy, Aerospace, Water Purifier Filter, Coffee Machine Filter, Automobile Fuel Tank Filter, etc.

Send Email 다운로드

제품 설명

Stainless Steel Filter Mesh is a high-performance industrial filter component made of stainless steel as the main material. With its corrosion resistance, high temperature resistance, high strength and other characteristics, it is widely used in screening and filtering operations in harsh environments.

제품 설명

1. Material type

-Basic models: 304, 304L (general-purpose, resistant to weak acids and alkalis).

-Enhanced models: 316, 316L (resistant to strong acids and salt corrosion, suitable for chemical and seawater environments).

-Special models: 2205 duplex steel, 310S (resistant to high temperatures up to 1150°C), Monel alloy (resistant to hydrofluoric acid).

2. Key performance

-Corrosion resistance: resistant to corrosion from acids and alkalis, organic solvents and electroplating solutions.

-High temperature resistance: 304 type can withstand short-term high temperatures of 480°C, and 310S type can withstand long-term working temperatures of 800–1150°C.

-Mechanical strength: high tensile strength (≥500 MPa) and wear resistance, suitable for high pressure and high wear scenarios.

-Easy to maintain: supports repeated cleaning (such as backwashing), welding, and cutting.

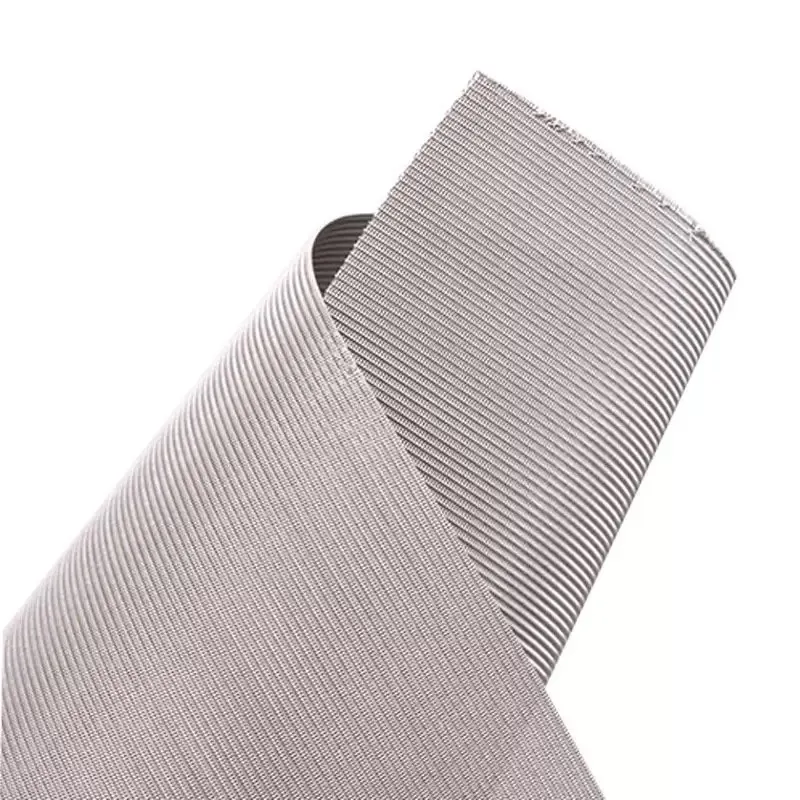

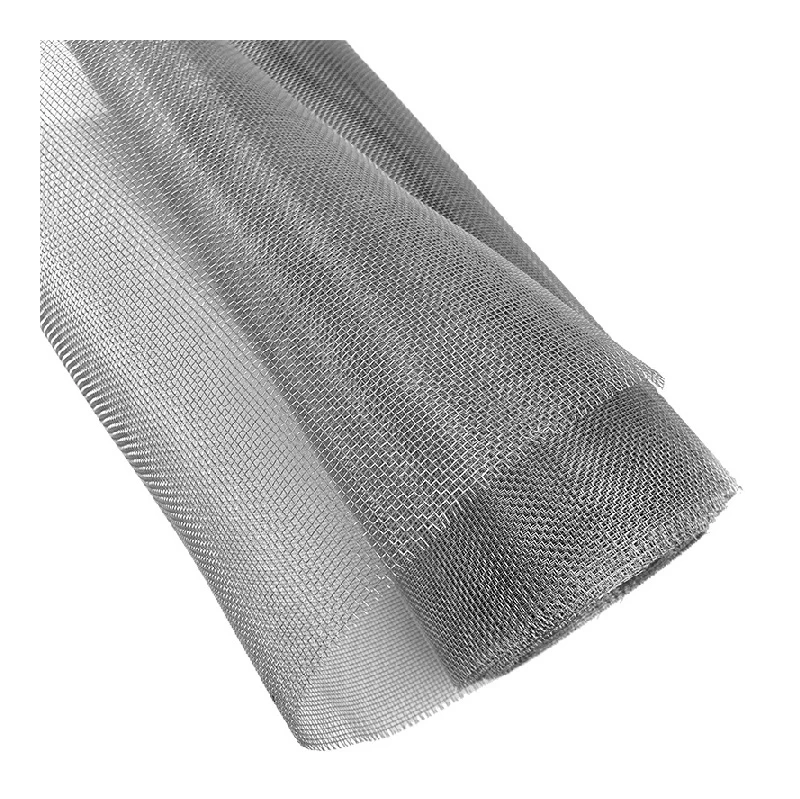

Product woven type

Stainless Steel Filter Mesh

Product Shape And Specification

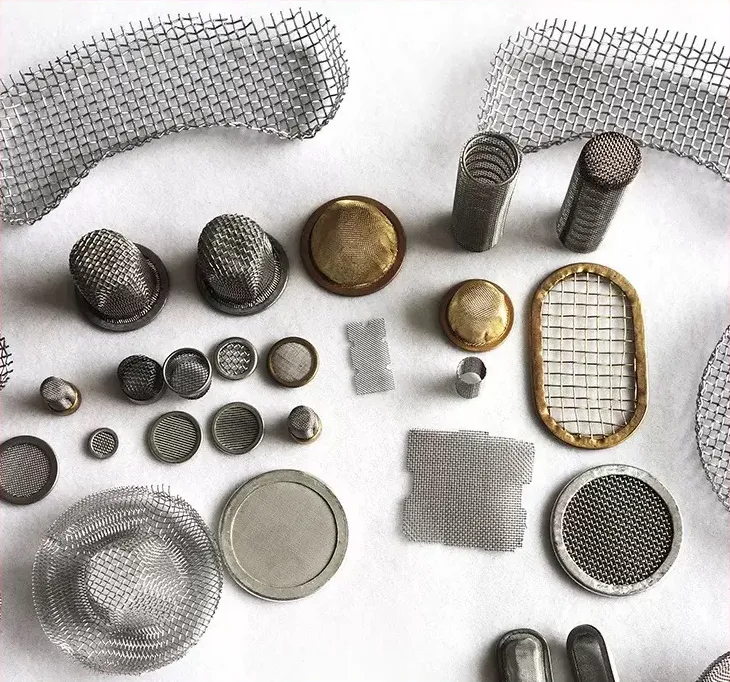

1.Shape

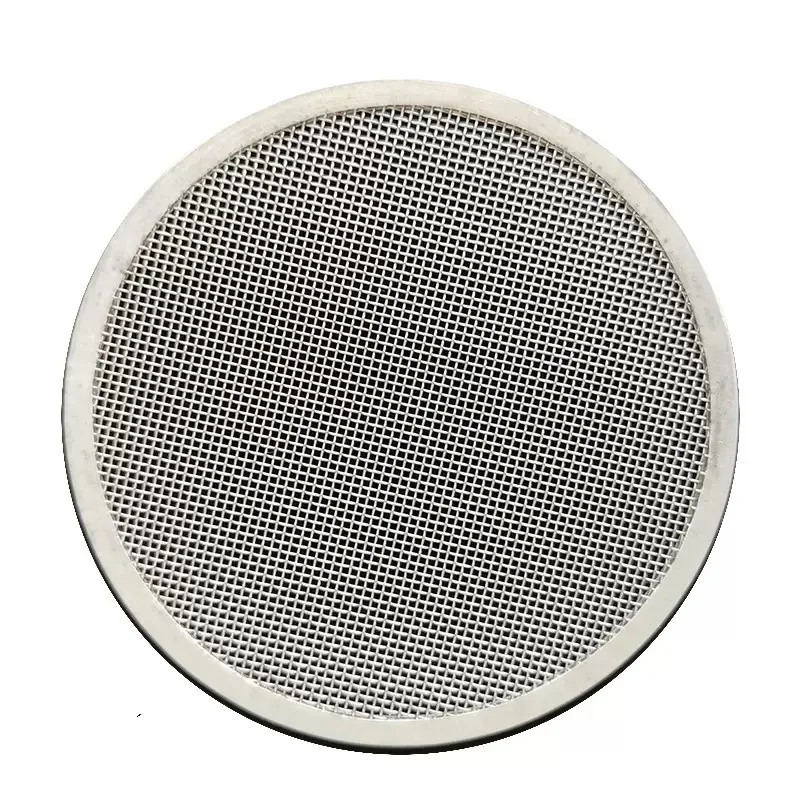

Round (diameter 5-600 mm), rectangular, waist-shaped, oval and special shapes can be customized

2.Product specification

Covering 20-635 mesh (see the table below for common specifications), the highest precision is 1μm (635 mesh)

Mesh count	Wire diameter(mm)	Hole size(mm)
40-100mesh	0.28-0.5	0.25-0.10
200-325mesh	0.053-0.14	0.074-0.043
500-635mesh	0.025-0.04	0.025-0.001

제품 응용 프로그램

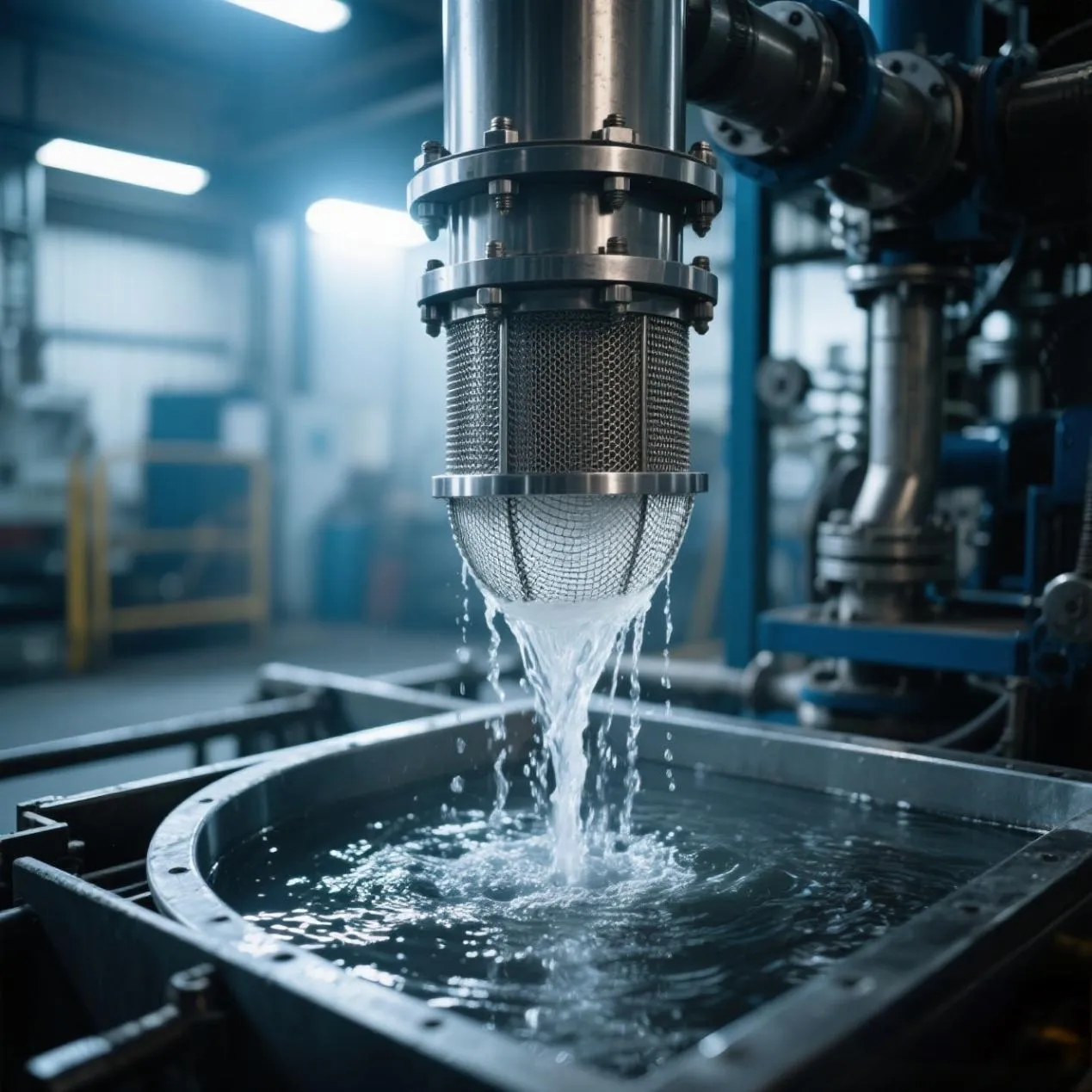

Industrial filtration and separation

- Petrochemical/Chemical: Crude oil filtration, pickling net, catalyst recovery (316L material is resistant to sulfur corrosion).
- Food and medicine: Juice filtration, sterile liquid separation (316L electrolytic polishing is required, in compliance with GMP).
- Environmental protection: Sewage treatment grid, flue gas dust removal support layer.
Civilian field

Water purifier filter, coffee machine filter, automobile fuel tank filter, etc.

High-end manufacturing and special scenarios

- Chemical fiber/plastic: Melt spinneret filtration (high temperature resistance up to 480℃).
- Electronic energy: Button battery diaphragm, speaker dust net, headphone acoustic net (ultra-fine mesh precision weaving).
- Aerospace: Fuel filtration (310S is resistant to ultra-high temperature).
선택 제안

- Strong acid/seawater environment → Select 316L or 2205 duplex steel, resistant to pitting.
- High temperature melt filtration → 310S or nickel-based alloy (temperature resistance > 800℃).
- Food/medical grade → 316L electrolytic polishing, pore size matches HACCP standards (such as 100 mesh sterilization).
-Precision Electronics → 635 mesh plain weave, wire diameter ≤ 0.04mm.

제품 설명

1. Stability and lifespan

- Filtration accuracy fluctuation <±0.01mm (laser micropore technology), no deformation after long-term use.

- Lifespan is more than 3 times that of ordinary mesh belts (corrosion-resistant + wear-resistant design).

2. Economical and environmentally friendly

- Supports backwashing and reuse to reduce consumables costs.

- 100% recyclable material, no risk of coating contamination.

3. Customization flexibility

- Customizable width (0.5–3m), number of layers, alloy material and non-standard shape.

제품 응용 프로그램
제품 응용 프로그램

제품 응용 프로그램

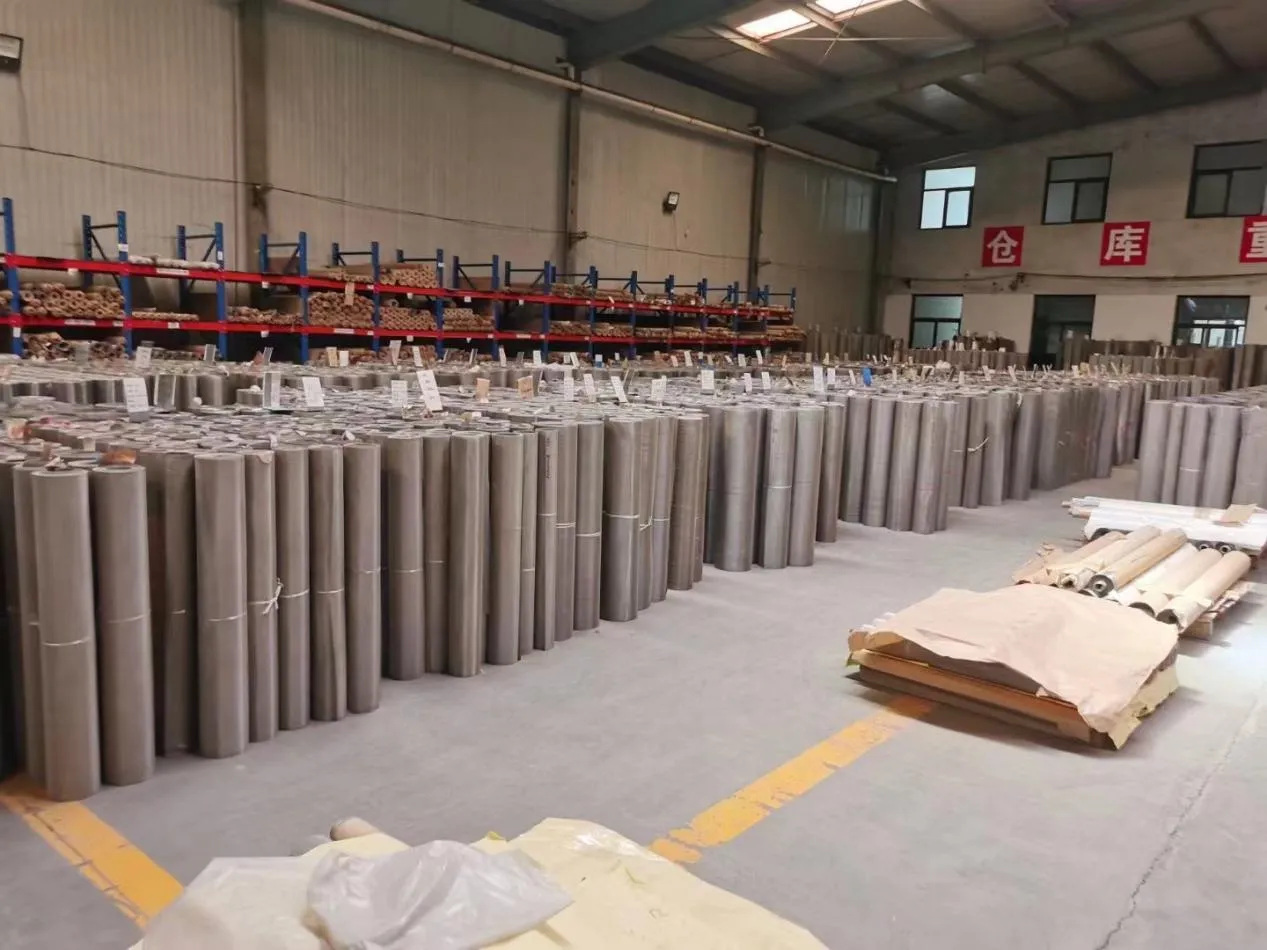

우리 주식

자주 묻는 질문

당신은 제조업체이신가요? 아니면 무역업체이신가요?

저희는 와이어 메쉬 제품 전문 제조업체입니다. 안핑현 진쩌홍 와이어 메쉬 제품 유한회사는 2000년에 설립되어 생산, 연구 개발, 판매를 모두 아우르는 종합 기업으로 성장했습니다.

우리에게서 무엇을 살 수 있나요?

We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.

배송 시간은 언제인가요?

충분한 재고를 보유하고 있으며, 재고 자재 배송은 1주일 이내에 완료됩니다. 특별 맞춤 제작 상품의 경우, 수량 및 기술 요구 사항에 따라 정확한 배송 기간을 제공합니다.

어떻게 제품 품질을 보장하시나요?

We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.

샘플을 제공해 주실 수 있나요?

네, 테스트용 샘플을 제공하고 싶습니다.

What Is Stainless Steel Filter Mesh?

Stainless steel filter mesh is a precision-engineered woven or perforated mesh made from stainless steel wires, specifically designed for filtration and separation applications. Its primary purpose is to filter out unwanted particles, debris, or contaminants from liquids, gases, or solids while maintaining efficient flow. Unlike synthetic filters, stainless steel mesh is durable, corrosion-resistant, and can withstand high temperatures and pressure conditions. It comes in various weaving styles such as plain weave, twill weave, and Dutch weave, each offering different levels of filtration accuracy. The mesh size and wire thickness can be customized depending on the specific application, ranging from coarse screening to ultra-fine filtration. Due to its stainless steel construction, it is resistant to rust, chemical attack, and mechanical wear, ensuring a long service life. This makes it suitable for industries such as food processing, pharmaceuticals, water treatment, chemical refining, and oil and gas production. In short, stainless steel filter mesh combines precision, durability, and versatility, making it an essential filtration material in both industrial and commercial applications.

What Are The Applications Of Stainless Steel Filter Mesh?

Stainless steel filter mesh has a wide variety of applications across multiple industries. In the food and beverage industry, it is used to filter oils, syrups, juices, and other liquids while maintaining hygiene and product purity. In pharmaceuticals, stainless steel mesh ensures fine powder separation and liquid purification, critical for producing safe and consistent medicines. Water treatment facilities use it to filter impurities, sand, and other particles, ensuring clean water supply. In the chemical industry, stainless steel mesh is employed in processes that require resistance to corrosive fluids, including acid and alkali filtration. It is also widely used in petroleum refining and natural gas processing to remove contaminants during production. For automotive and aerospace industries, stainless steel filter mesh plays a role in hydraulic systems, air intake filters, and fuel filtration. It is equally valuable in construction, mining, and agriculture, where it screens particles and separates materials efficiently. These diverse applications highlight the adaptability of stainless steel filter mesh in both precision tasks and heavy-duty industrial environments.

What Are The Benefits Of Using Stainless Steel Filter Mesh?

Stainless steel filter mesh provides several significant benefits compared to other filtration materials. First, it offers outstanding durability, capable of withstanding harsh working conditions such as high pressure, extreme temperatures, and corrosive environments. Second, it provides accurate and consistent filtration due to uniform mesh openings, ensuring reliable separation of particles without compromising flow efficiency. Third, stainless steel is reusable—unlike disposable filter media, it can be cleaned and reused multiple times, reducing long-term costs. Fourth, it is hygienic and safe for food and pharmaceutical applications, as stainless steel does not leach harmful chemicals or degrade during use. Additionally, its resistance to rust, wear, and chemical attack makes it suitable for long-term industrial use with minimal maintenance. From an environmental perspective, stainless steel is recyclable, making it an eco-friendly choice compared to synthetic alternatives. Finally, its structural stability prevents mesh deformation, ensuring reliable performance even under heavy loads. Altogether, stainless steel filter mesh is a cost-effective, sustainable, and high-performance solution for industries that demand precision and reliability.
