제품 설명

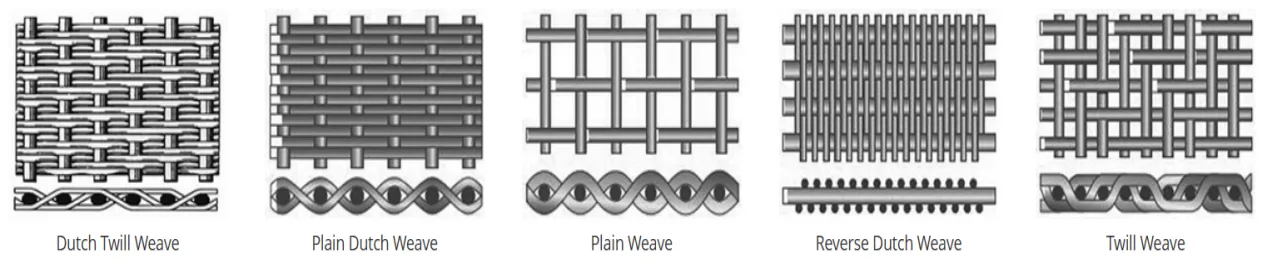

The metal dutch weave wire mesh adopts a differentiated design of warp and weft wire diameters (the warp wire is usually thicker than the weft wire). Through plain, twill, bamboo flower or contrast weaving technology, it forms a finer filtration density than the square hole mesh (up to 1600 mesh), achieving micron-level particle retention. The materials include SUS304, 316L, pure nickel wire, etc., ensuring stable performance in acid, alkali and high temperature environments, and increasing the life by more than 30%.
|
Type
|
Mesh count
|
Wire diameter(mm)
|
Hole size(um)
|
Roll Width
|
|
Plain Dutch weave
|
40-300
|
0.55*0.42-0.11*0.039
|
32-260
|
1-1.6m
|
|
Twill Dutch weave
|
80-1600
|
0.28*0.2-0.03*0.018
|
3-38
|
1-1.6m
|
|
Support customized mesh (such as 12×64 to 500×3200 mesh), wire diameter combination and special alloy material
|
-
Precision filtration
pore size error ≤±3μm, filtration accuracy up to 3 microns (such as 1600 mesh model), far exceeding the limit of square mesh;
-
High efficiency flowability
precise control of opening rate (20%-70%), flow loss is lower than traditional filter;
-
Strong environmental adaptability
acid and alkali resistance (pH 1-14), high temperature resistance (≤850℃), tensile strength increased by 50%;
-
Long life design
wear-resistant wire diameter structure + anti-oxidation material, reducing replacement frequency.
Industrial filtration
fuel filter, vacuum pump filter element, liquid sterilization (pharmaceutical/GMP certification), food-grade screening, plastic extrusion filtration;
Energy and chemical industry
petroleum mud net, chemical fiber spinneret, electroplating pickling tank protection;
High-end field
spacecraft fuel filtration, nuclear industry media separation, high-purity electronic chemical purification;
Architecture and decoration
building curtain wall light-transmitting layer, insect-proof ventilation grille (can be combined with laser cutting to customize the pattern).
Product Package
Standard form: roll (covered with anti-scratch PE film, diameter 80cm) or sheet (cut to custom size);
Export protection: wooden box + bubble film, corner protection on the edges, moisture-proof and pressure-proof;
Minimum order: 50 square meters (roll), sheets cut on demand;
Logistics support: global sea/air transportation, providing DDP, FOB and other trade terms.
-
Product Package
-
Product Package
당신은 제조업체이신가요? 아니면 무역업체이신가요?
저희는 와이어 메쉬 제품 전문 제조업체입니다. 안핑현 진쩌홍 와이어 메쉬 제품 유한회사는 2000년에 설립되어 생산, 연구 개발, 판매를 모두 아우르는 종합 기업으로 성장했습니다.
우리에게서 무엇을 살 수 있나요?
We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.
배송 시간은 언제인가요?
충분한 재고를 보유하고 있으며, 재고 자재 배송은 1주일 이내에 완료됩니다. 특별 맞춤 제작 상품의 경우, 수량 및 기술 요구 사항에 따라 정확한 배송 기간을 제공합니다.
어떻게 제품 품질을 보장하시나요?
We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.
샘플을 제공해 주실 수 있나요?
네, 테스트용 샘플을 제공하고 싶습니다.
