Produktbeschreiwung

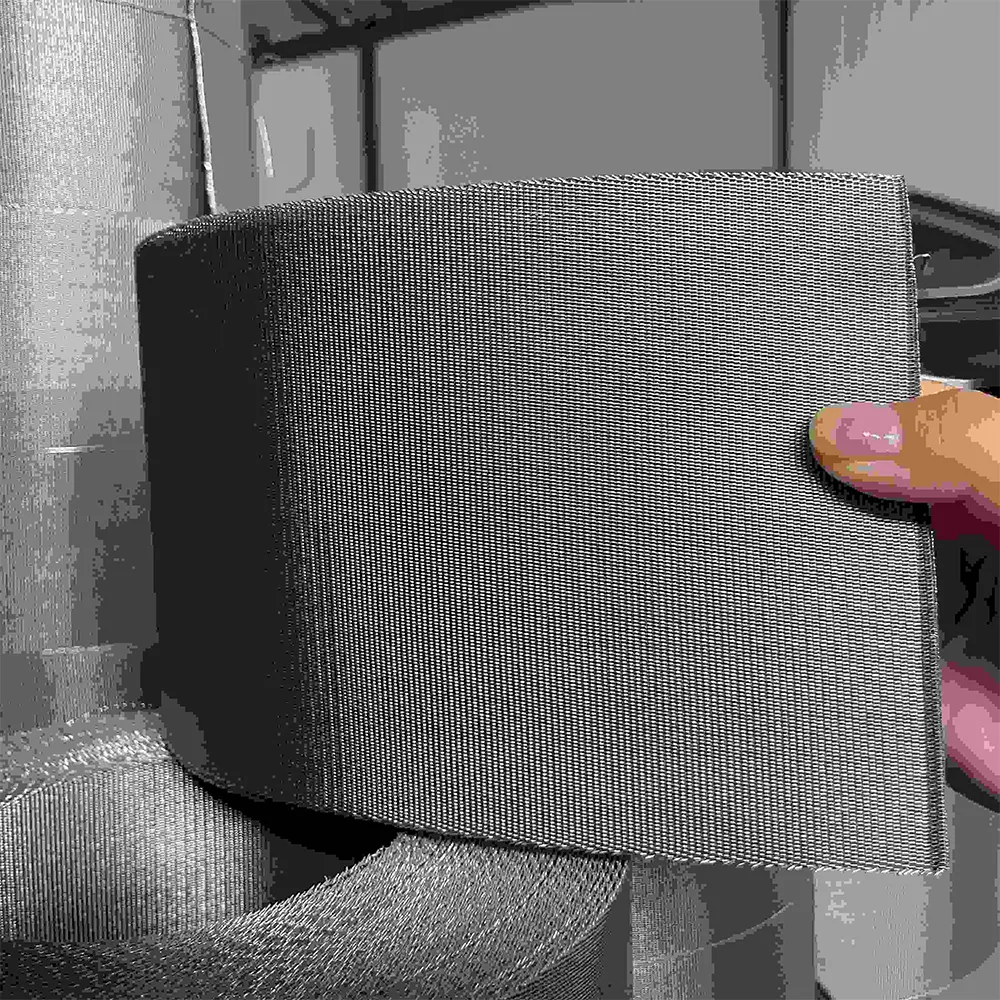

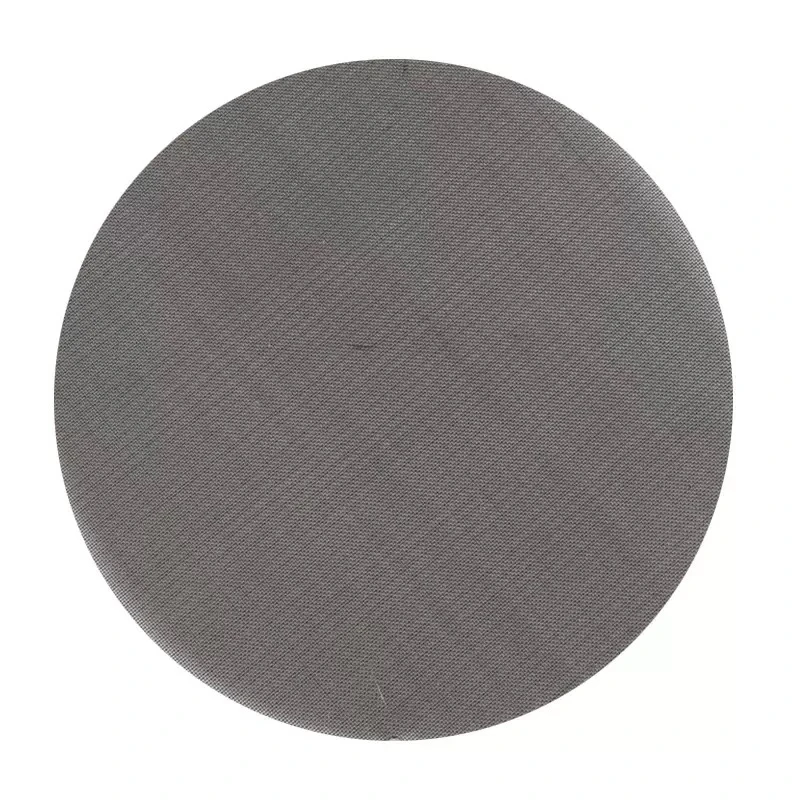

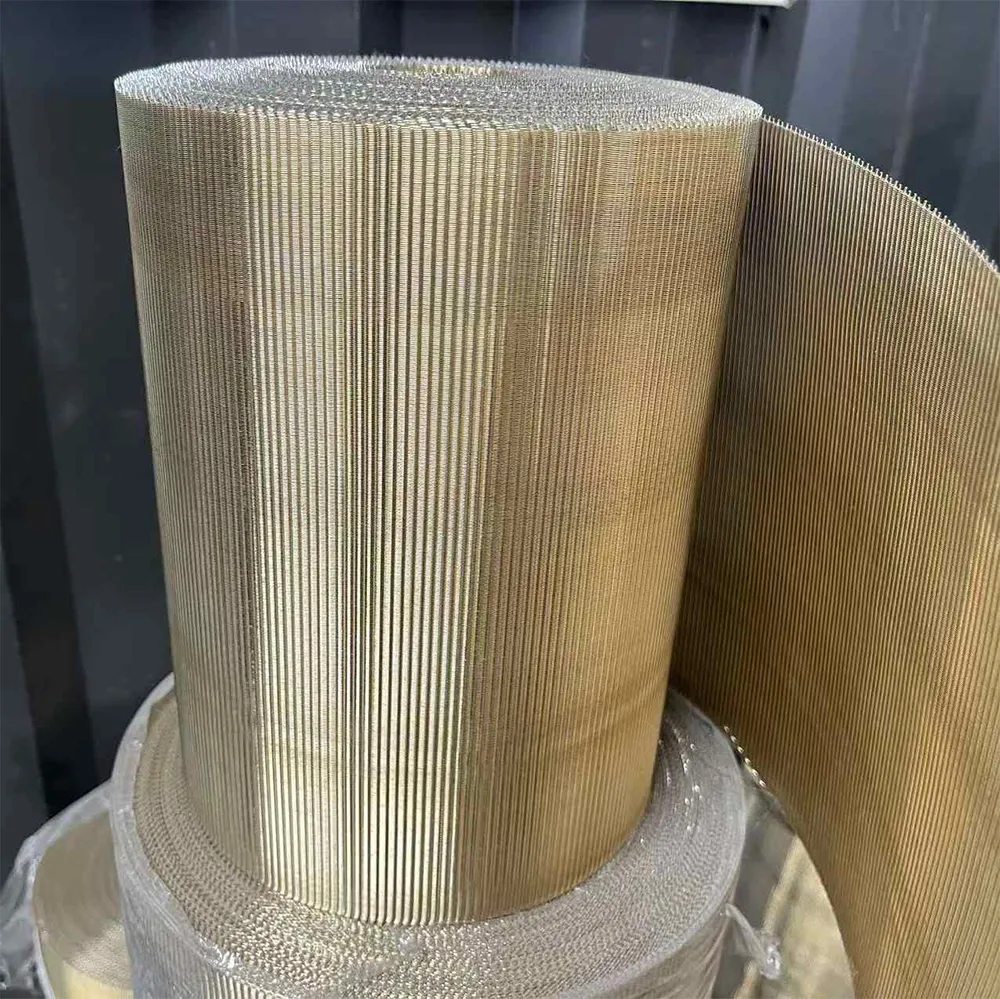

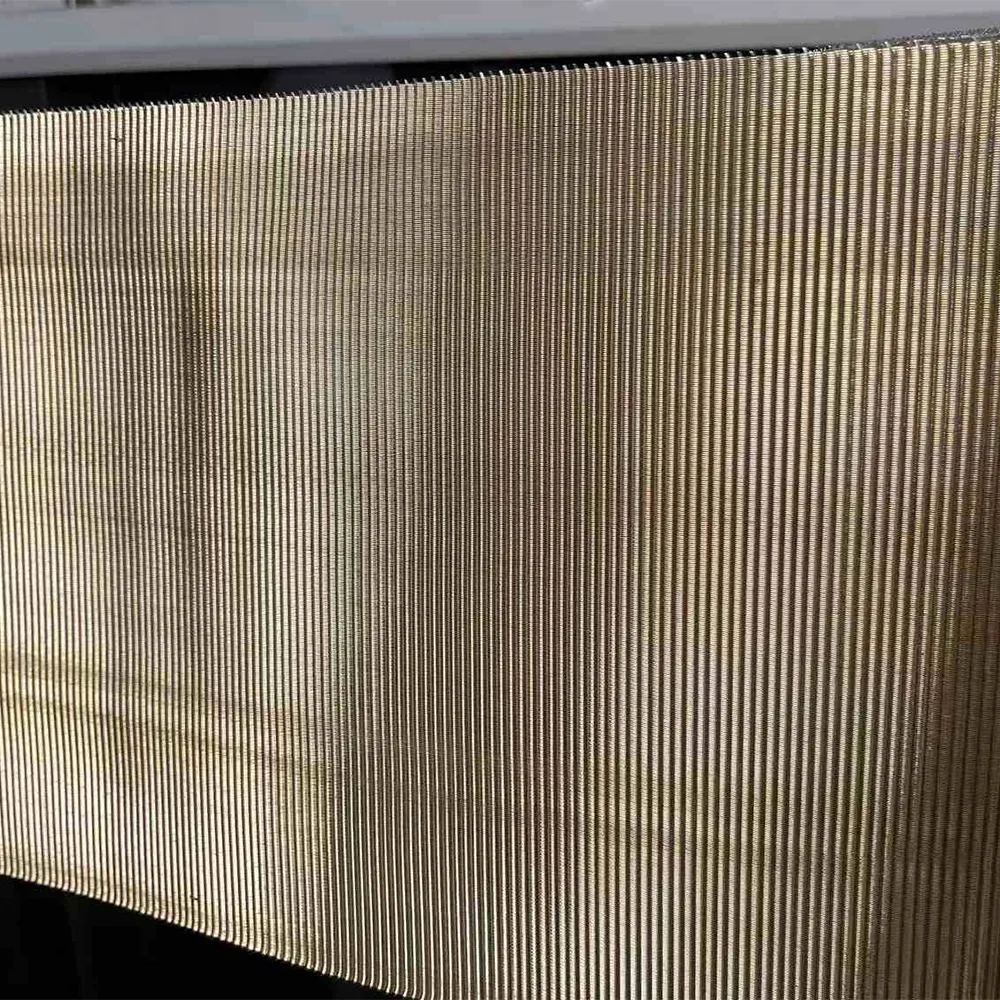

The metal dutch weave wire mesh adopts a differentiated design of warp and weft wire diameters (the warp wire is usually thicker than the weft wire). Through plain, twill, bamboo flower or contrast weaving technology, it forms a finer filtration density than the square hole mesh (up to 1600 mesh), achieving micron-level particle retention. The materials include SUS304, 316L, pure nickel wire, etc., ensuring stable performance in acid, alkali and high temperature environments, and increasing the life by more than 30%.
|
Type
|
Mesh count
|
Wire diameter(mm)
|
Hole size(um)
|
Roll Width
|
|
Plain Dutch weave
|
40-300
|
0.55*0.42-0.11*0.039
|
32-260
|
1-1.6m
|
|
Twill Dutch weave
|
80-1600
|
0.28*0.2-0.03*0.018
|
3-38
|
1-1.6m
|
|
Support customized mesh (such as 12×64 to 500×3200 mesh), wire diameter combination and special alloy material
|
-
Precision filtration
pore size error ≤±3μm, filtration accuracy up to 3 microns (such as 1600 mesh model), far exceeding the limit of square mesh;
-
High efficiency flowability
precise control of opening rate (20%-70%), flow loss is lower than traditional filter;
-
Strong environmental adaptability
acid and alkali resistance (pH 1-14), high temperature resistance (≤850℃), tensile strength increased by 50%;
-
Long life design
wear-resistant wire diameter structure + anti-oxidation material, reducing replacement frequency.
Industrial filtration
fuel filter, vacuum pump filter element, liquid sterilization (pharmaceutical/GMP certification), food-grade screening, plastic extrusion filtration;
Energy and chemical industry
petroleum mud net, chemical fiber spinneret, electroplating pickling tank protection;
High-end field
spacecraft fuel filtration, nuclear industry media separation, high-purity electronic chemical purification;
Architecture and decoration
building curtain wall light-transmitting layer, insect-proof ventilation grille (can be combined with laser cutting to customize the pattern).

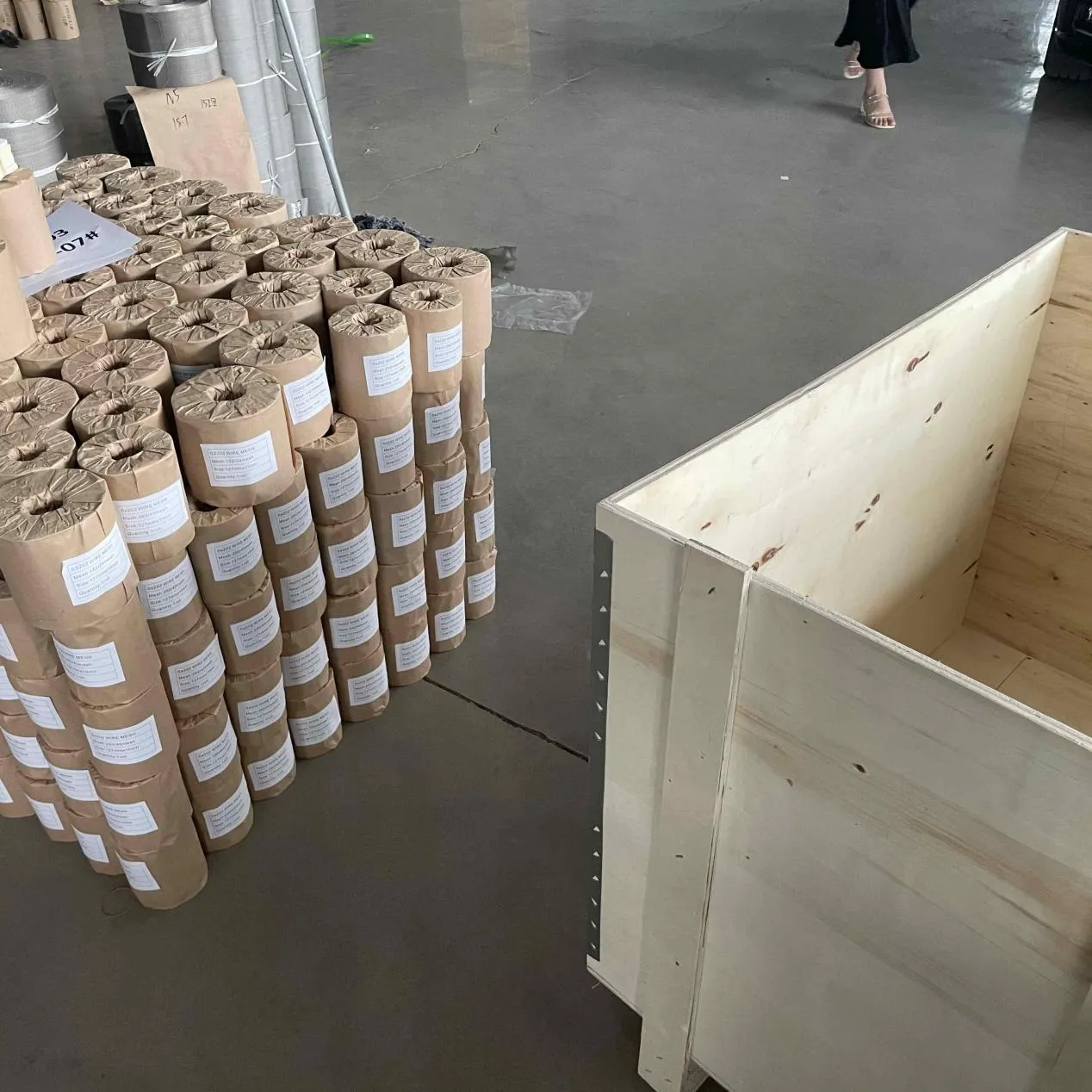

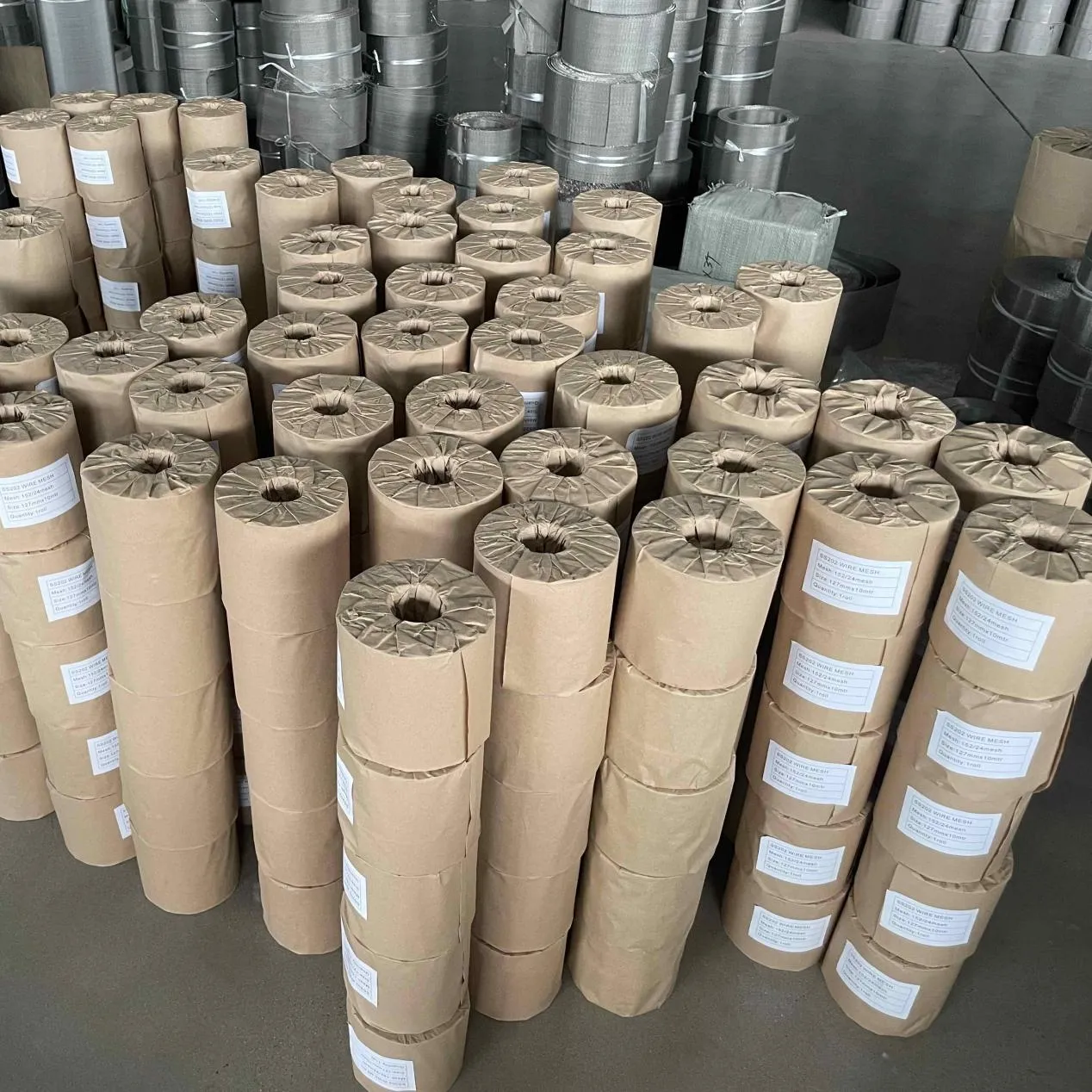

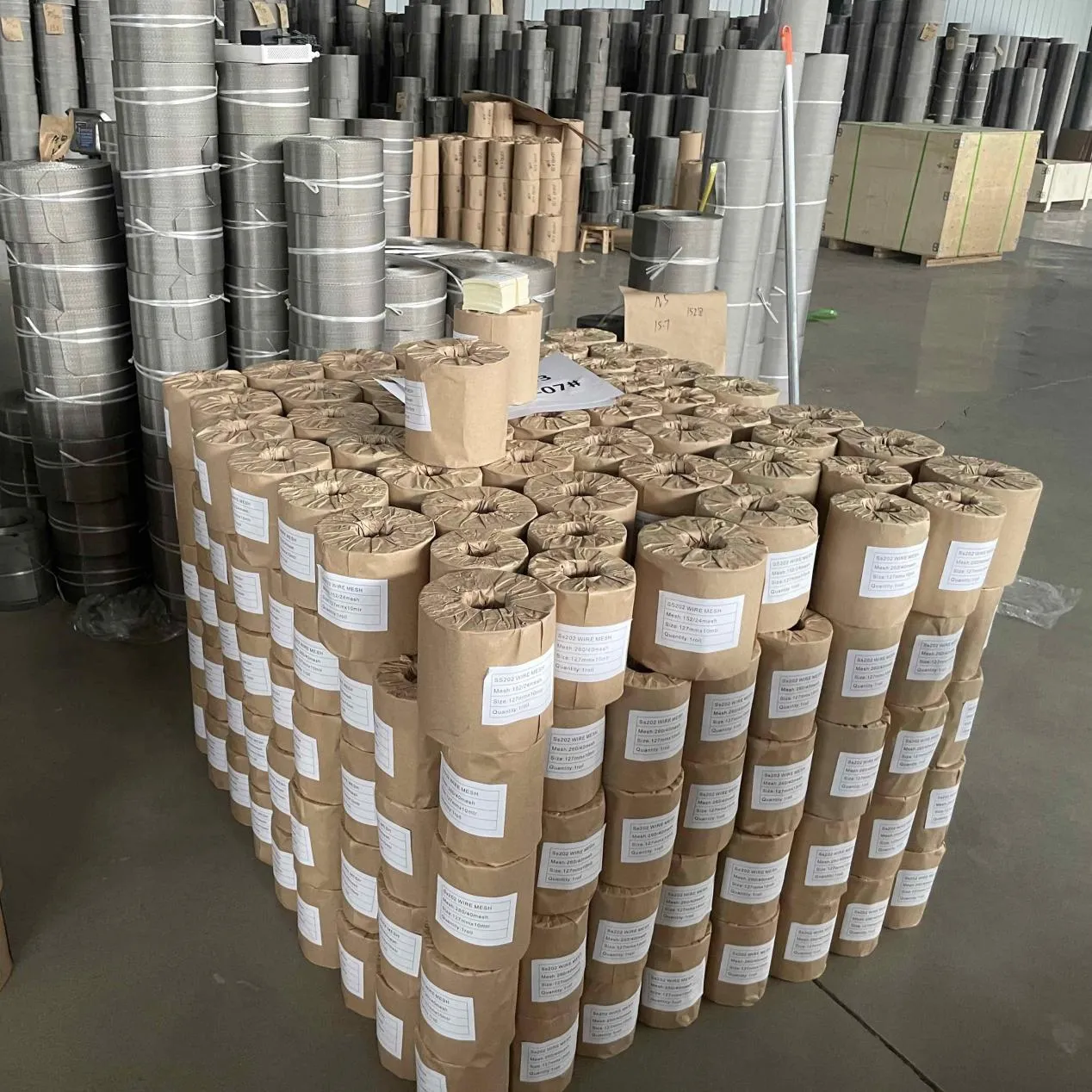

Product Package
Standard form: roll (covered with anti-scratch PE film, diameter 80cm) or sheet (cut to custom size);
Export protection: wooden box + bubble film, corner protection on the edges, moisture-proof and pressure-proof;
Minimum order: 50 square meters (roll), sheets cut on demand;
Logistics support: global sea/air transportation, providing DDP, FOB and other trade terms.
-
Product Package
-
Product Package
-
Product Package
-

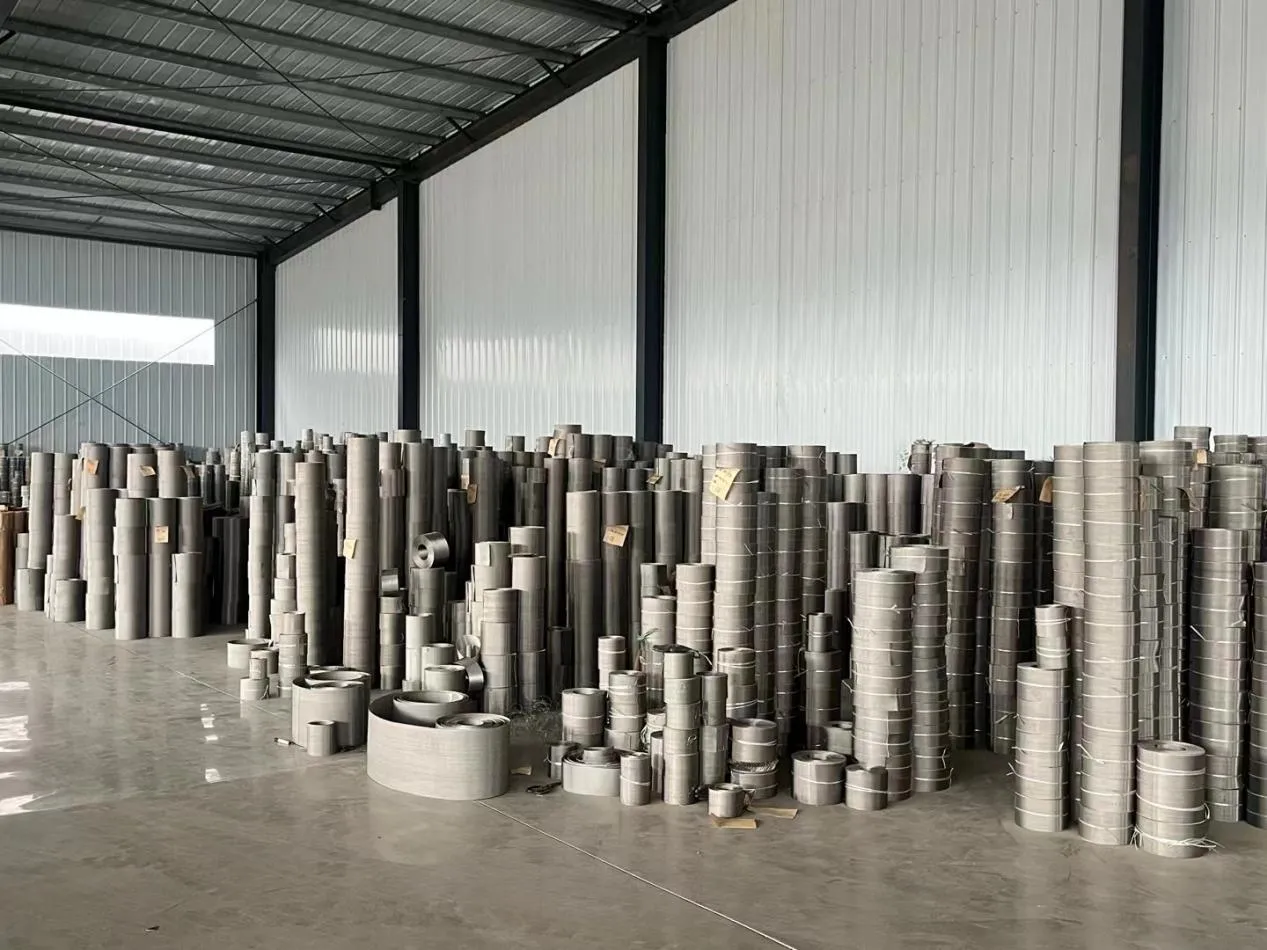

Eis Lager
Sidd Dir e Produzent oder Händler?
Mir sinn e professionnelle Produzent vu Drotnetzprodukter. D'Anping County Jinzehong Wire Mesh Products Co., Ltd. gouf am Joer 2000 gegrënnt an huet sech zu engem ëmfaassende Betrib entwéckelt, deen Produktioun, Fuerschung an Entwécklung a Verkaf integréiert.
Wat kënnt Dir bei eis kafen?
We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.
Wat ass Är Liwwerzäit?
Mir hunn genuch Lagerbestänn, an d'Liwwerzäit fir Lagermaterial ass eng Woch. Speziell personaliséiert Produkter bidden eng genee Liwwerzäit baséiert op Quantitéit an techneschen Ufuerderungen.
Wéi garantéiert Dir d'Produktqualitéit?
We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.
Kënnt Dir Beispiller ubidden?
Jo, mir géife gären Proben fir Är Tester zur Verfügung stellen.
