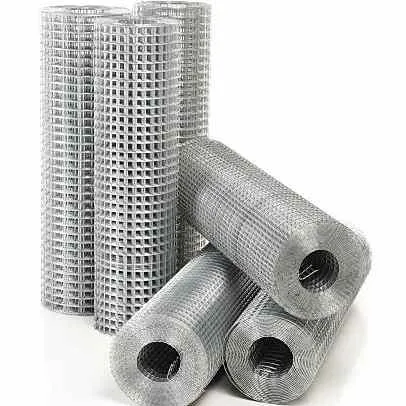

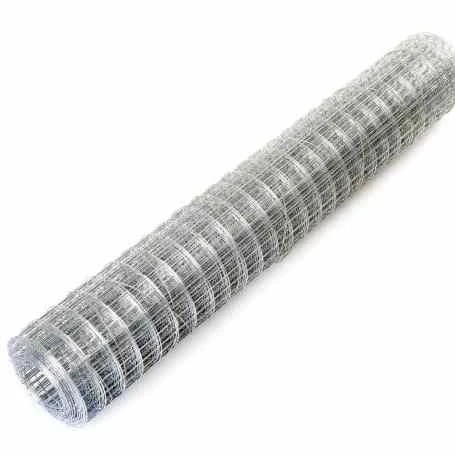

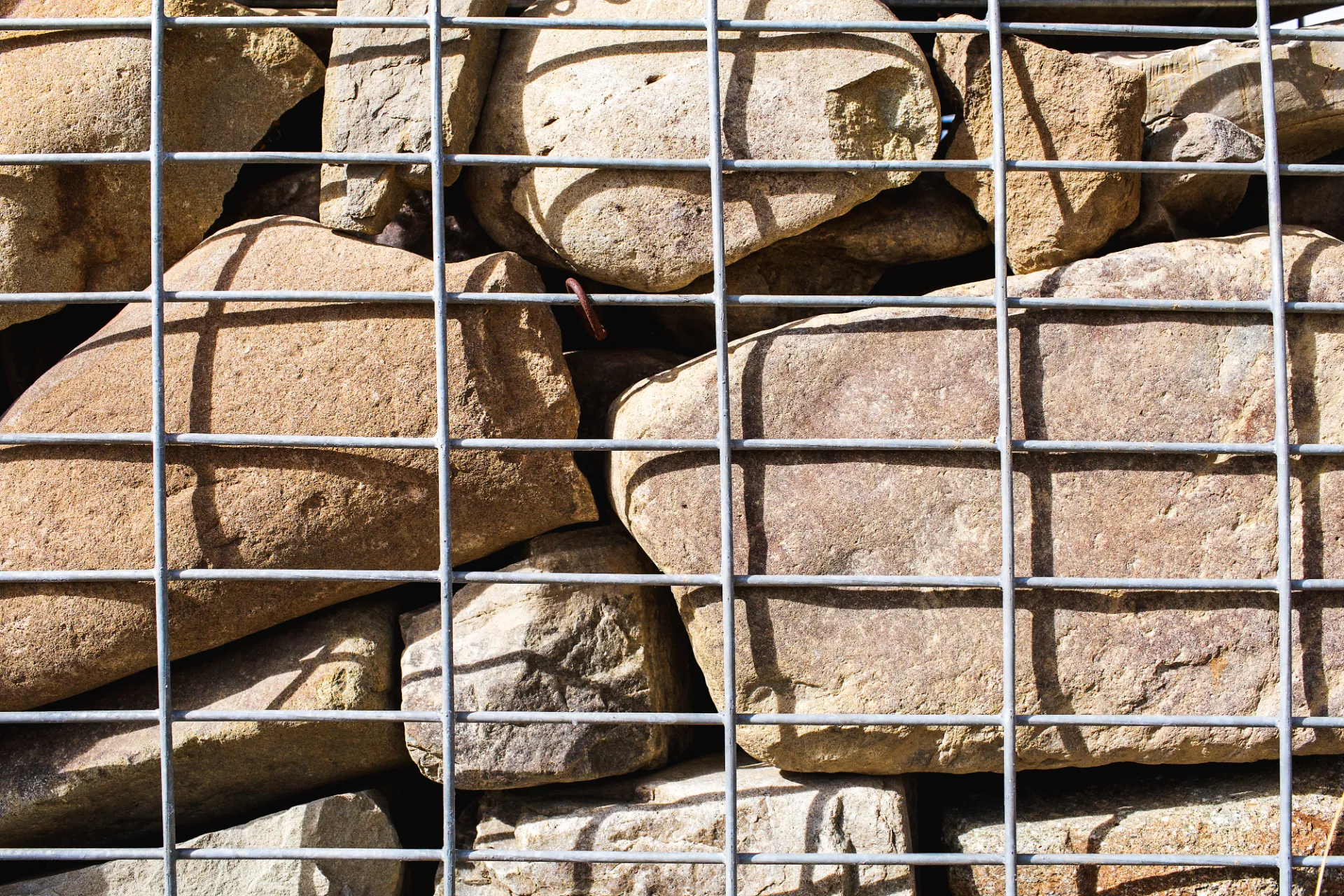

Galvanized Welded Wire Mesh

Hot-dip galvanized/electro-galvanized welded wire mesh - made of low-carbon steel wire, which is galvanized after precision welding to form a high-strength, corrosion-resistant rigid mesh structure. It is widely used in building reinforcement, agricultural fencing, industrial protection and other fields, and supports customized aperture and wire diameter.

Product Description

Galvanized welded wire mesh is made by welding the longitudinal (warp) and transverse (weft) steel wires vertically into a cross mesh through resistance welding. The surface is hot-dip galvanized (zinc layer ≥ 70g/㎡) or electro-galvanized (zinc layer ≥ 20g/㎡) to form a double anti-rust protective layer. The mesh is firm and does not move, with a tensile strength of 500-1200N/mm², and has both rigid support and flexible installation characteristics.



Parameter

Standard range

Customization options

Wire diameter

0.8mm-5.0mm(SWG22-8)

Thickened to 6.0mm (special load-bearing requirements)

Mesh opening

12.7*12.7mm(1/2’’)-100*100mm(4’’)

Rectangular hole (e.g. 50×100mm)

Zinc coating type

Hot dip galvanizing (excellent weather resistance)

Electro galvanizing (economical)

G90 hot-dip galvanizing (zinc layer 90g/㎡)

Width

1m, 1.2m, 1.5m, 2m

Maximum 3m (roll)

Length

30m/roll

Sheet packaging customization (maximum 6m×2.4m)



Note: Grid tolerance ±3%, zinc layer thickness complies with ISO 1461 (hot-dip galvanizing) and ASTM A641 (electrogalvanizing)

Product Features

Super strong anti-corrosion: the zinc layer isolates air and water vapor, and the outdoor service life is up to 15-20 years (hot-dip galvanizing);



  • Zero displacement structure

    the shear force of the welding point is >300N, and the mesh will never deform;
  • Safety protection

     smooth welding points without burrs to prevent scratches by animals/people;

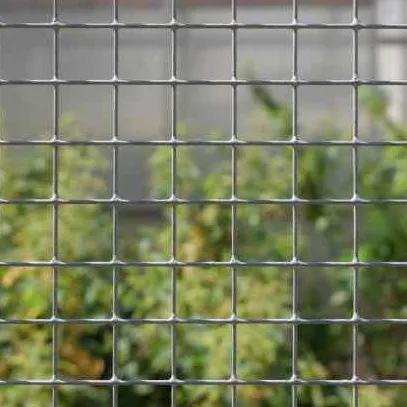

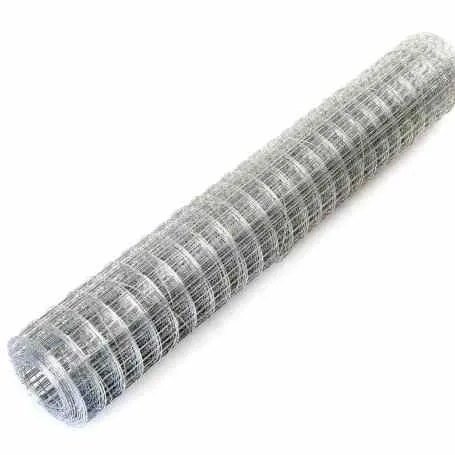

Galvanized Welded Wire Mesh
  • Quick installation

    can be cut, bent, tied, and compatible with U-shaped nails/cable ties for fixing;
  • Economical and efficient

    40% lower cost than stainless steel mesh, and maintenance costs are close to zero.



Product Usage

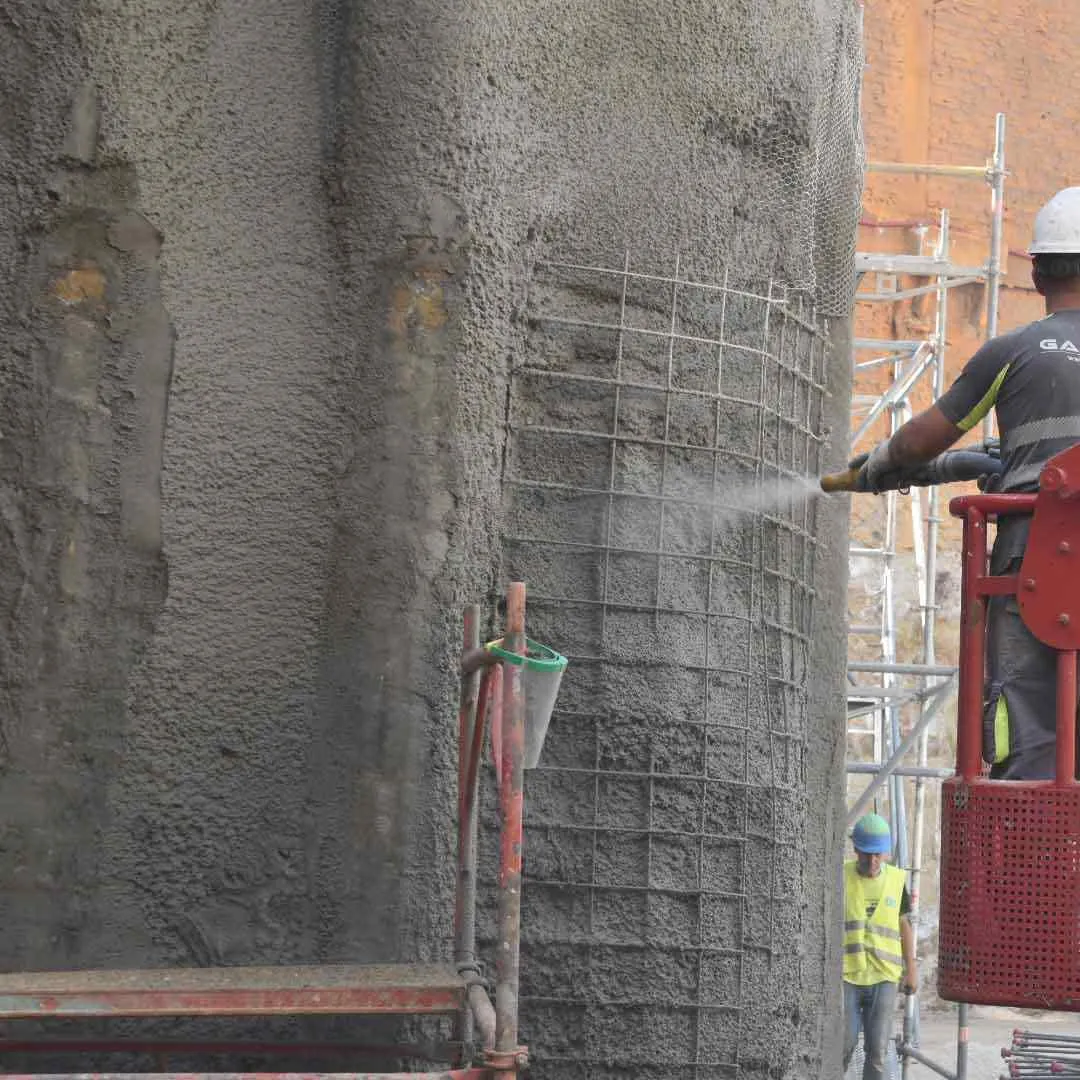

Construction projects

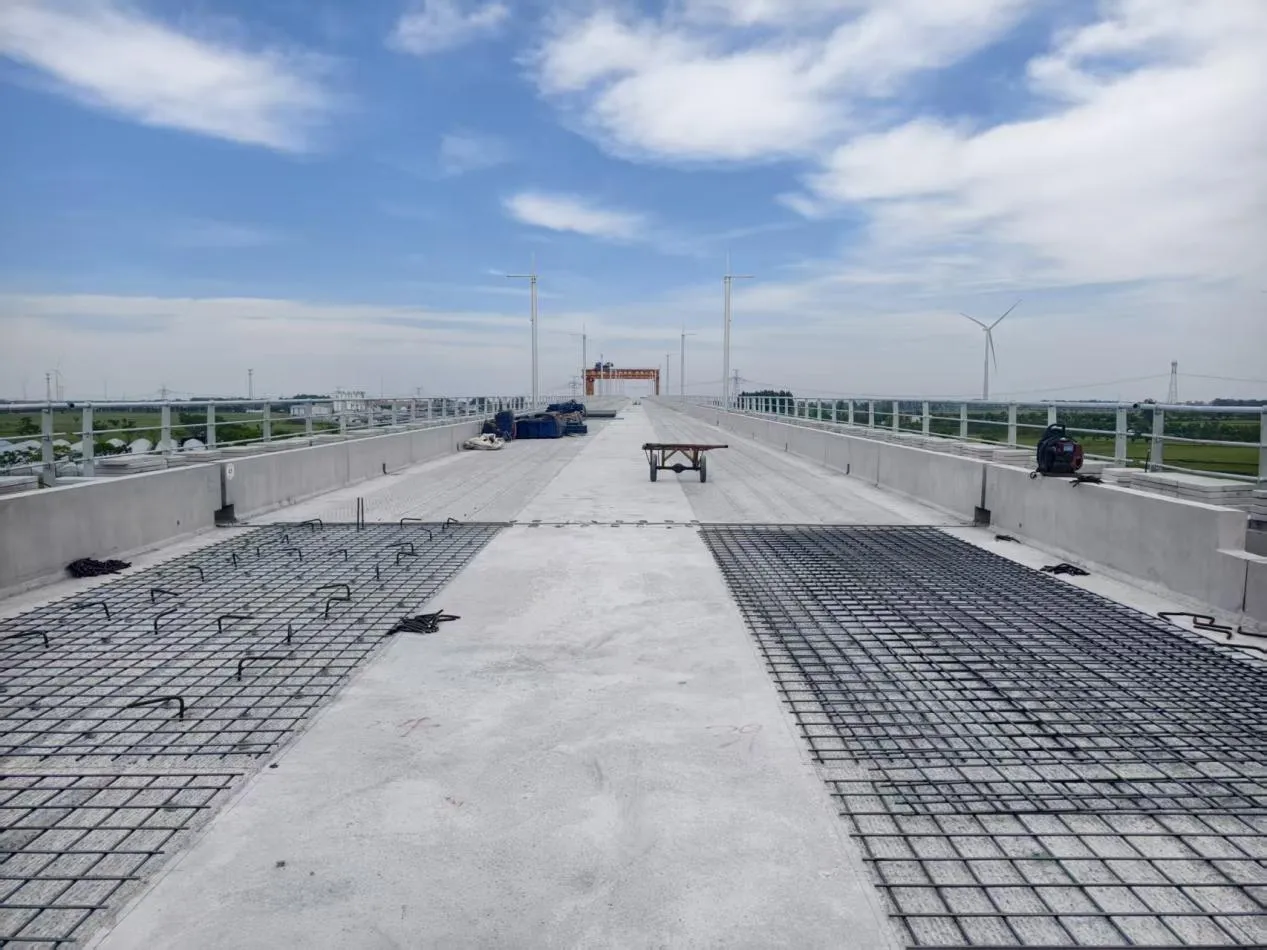

concrete wall cracking reinforcement, floor heating support layer, foundation reinforcement net;

Agriculture and animal husbandry

poultry house fences (chicken nets), animal cages, crop protection nets;

Industrial protection

equipment ventilation hoods, storage isolation nets, work platform anti-slip layers;

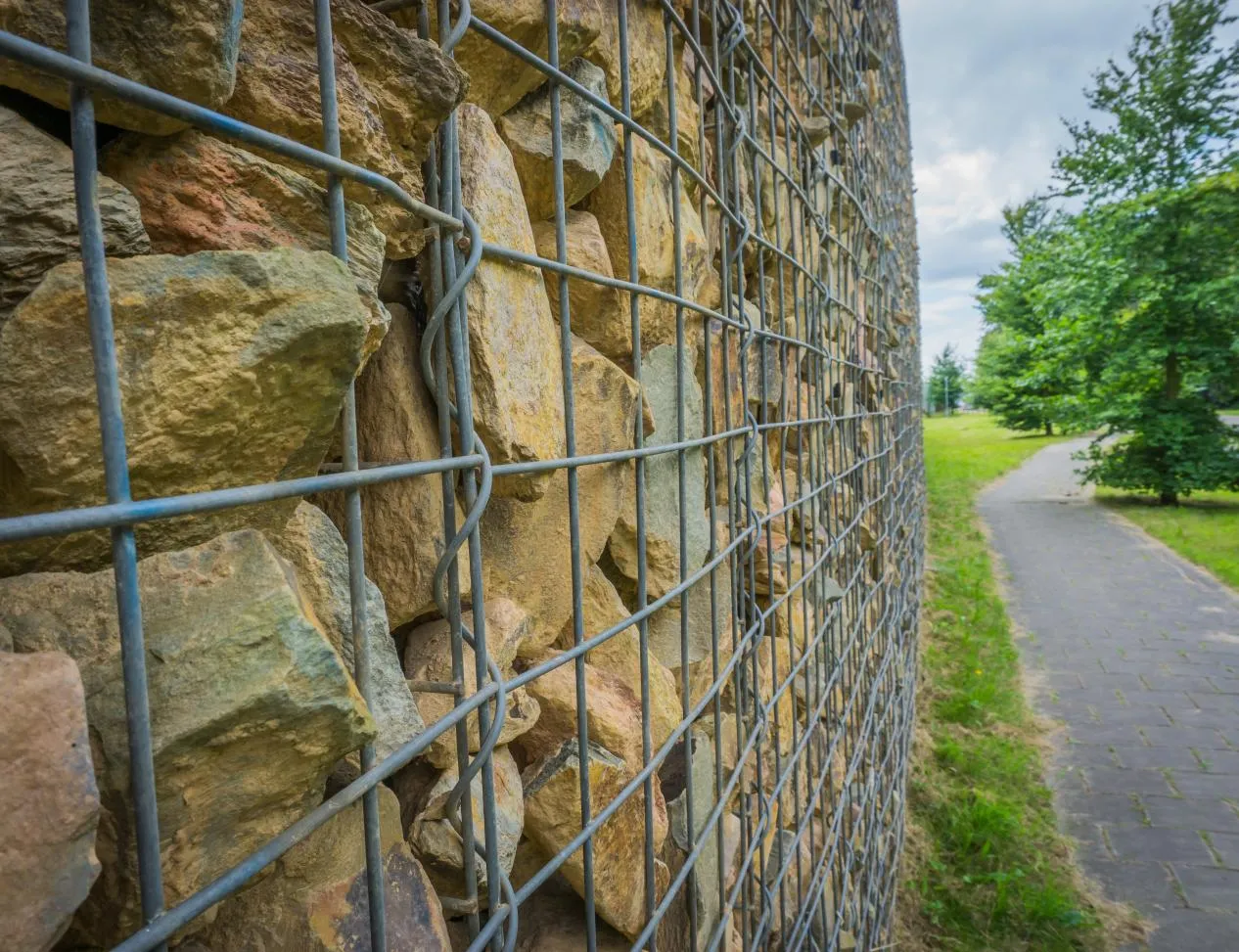

Municipal facilities

garbage station partitions, drainage ditch cover linings, slope protection nets;

Home applications

garden fences, storage rack layers, DIY creative components.



  • Galvanized Welded Wire Mesh



  • Galvanized Welded Wire Mesh



  • Galvanized Welded Wire Mesh

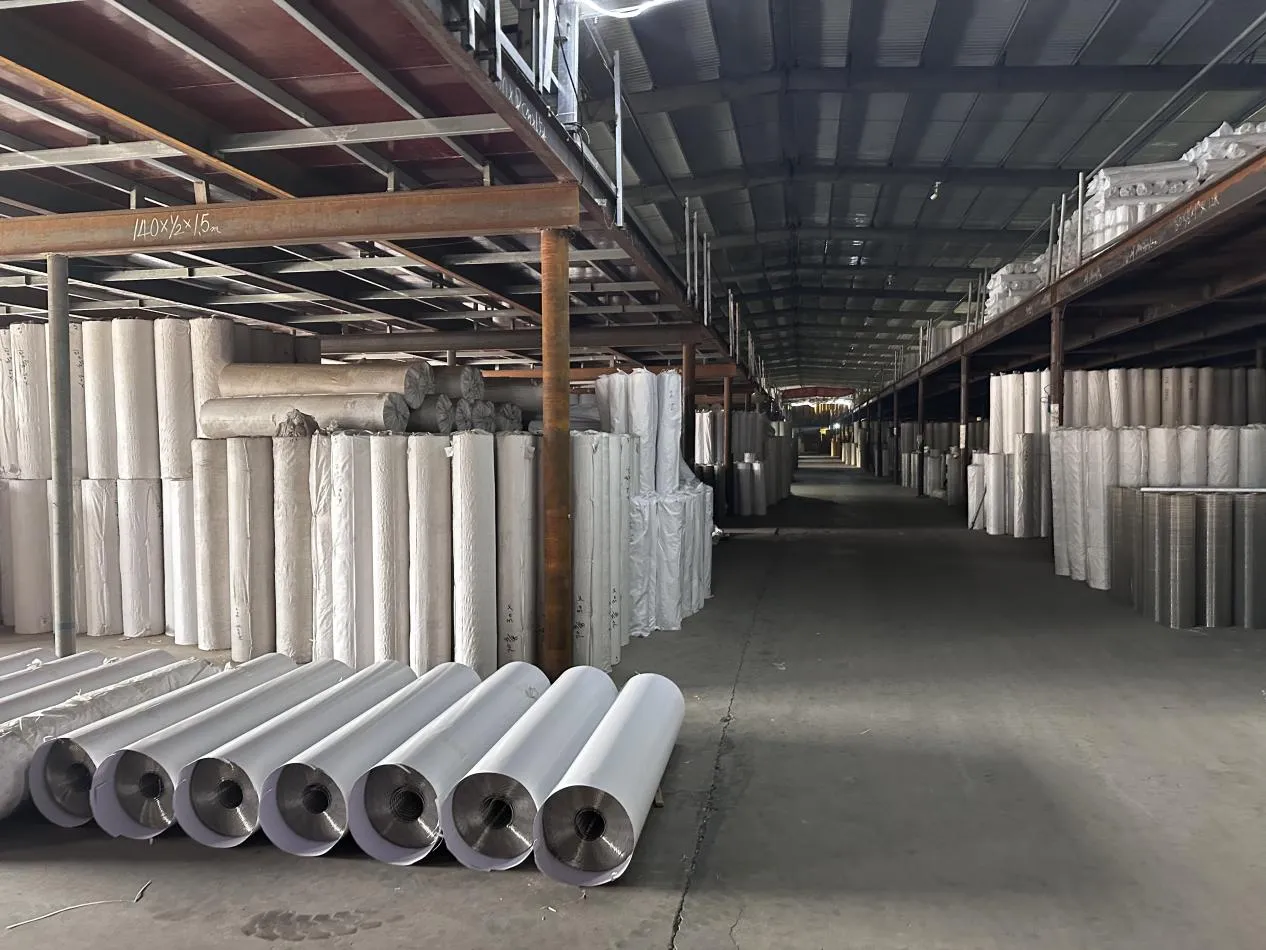

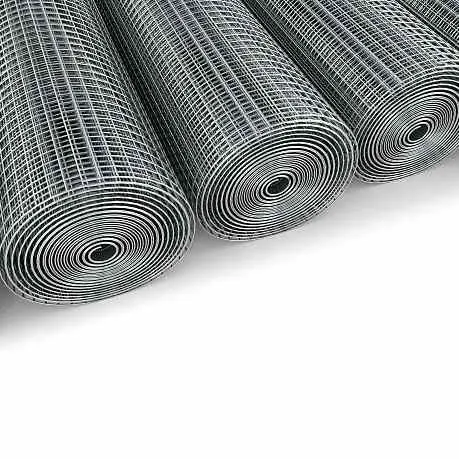

    Our stock

  • Galvanized Welded Wire Mesh

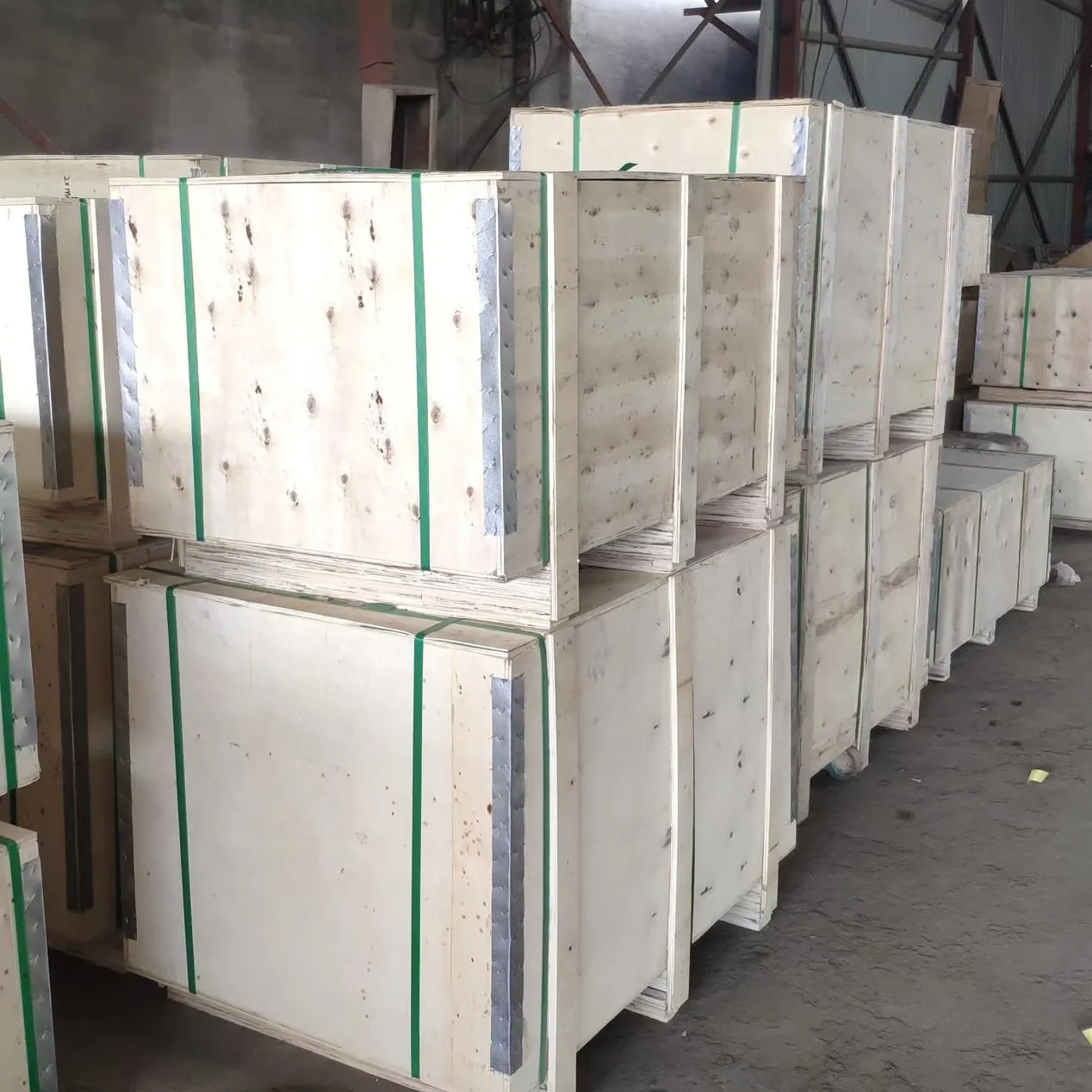

    Product Package



FAQ



Are you a manufacturer or trader?

We are a professional manufacturer of wire mesh products. Anping County Jinzehong Wire Mesh Products Co., Ltd. was established in 2000 and has grown into a comprehensive enterprise integrating production, R&D, and sales.

What can you buy from us?

We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and etc.

What is your delivery time?

We keep sufficient inventory, and the delivery time for stock materials is one week. Special customized products will provide an accurate delivery time based on quantity and technical requirements.

How do you ensure product quality?

We provide ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.

Can you provide samples?

Yes, we would like to provide samples for your testing.
