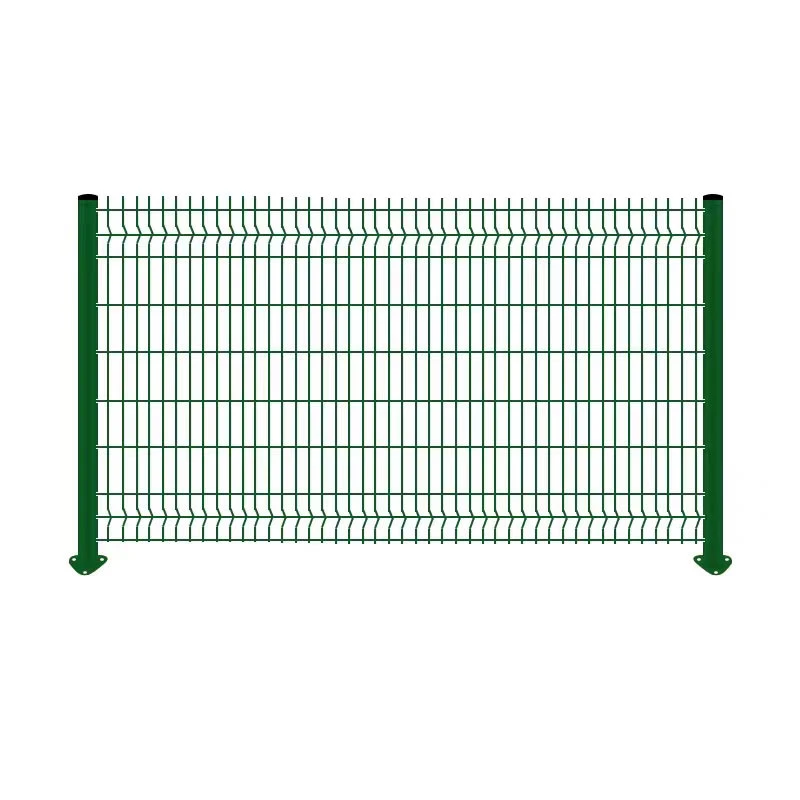

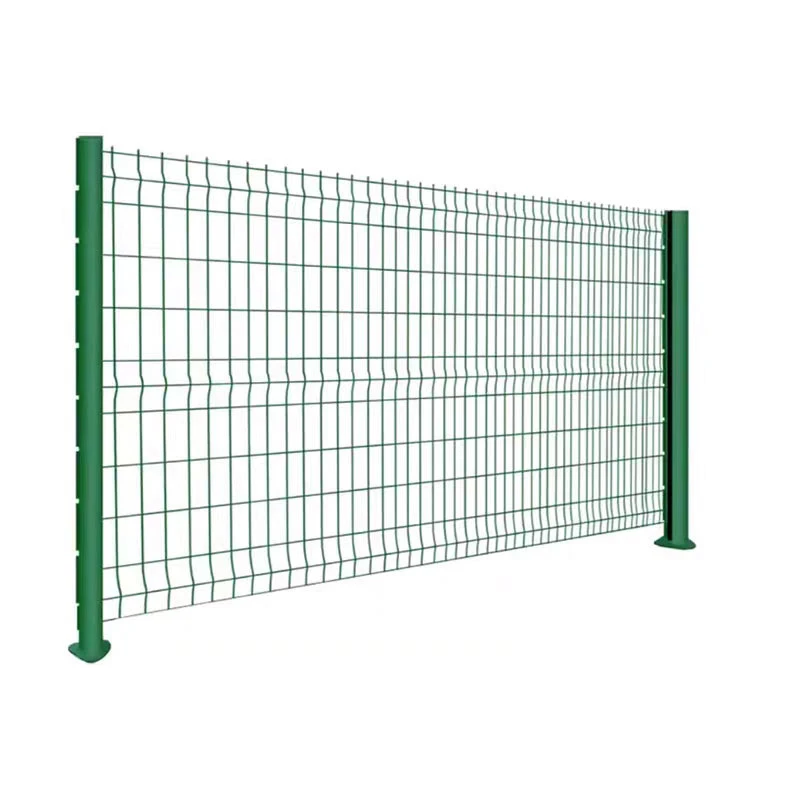

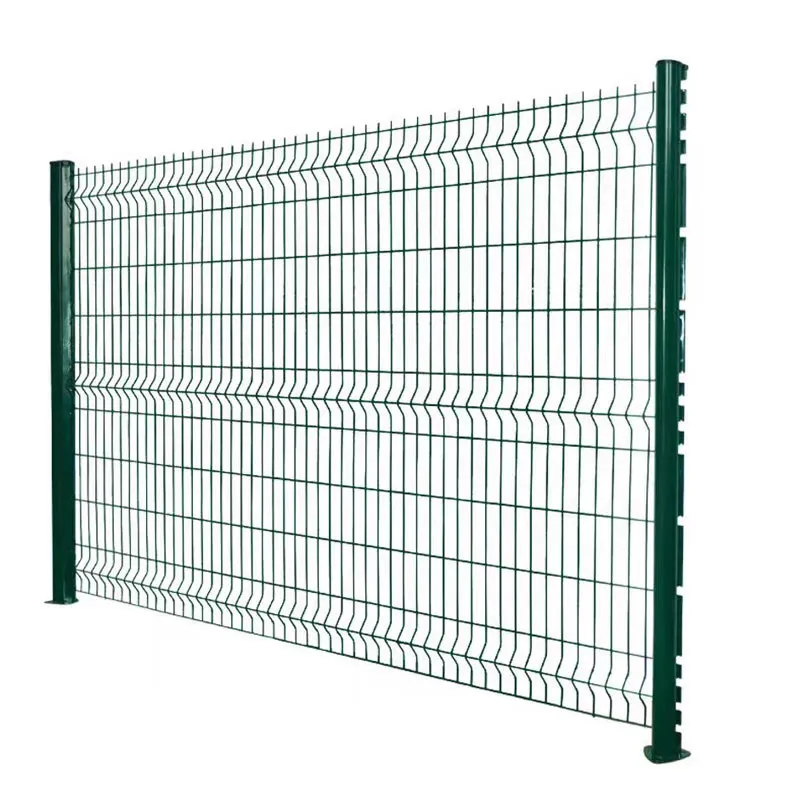

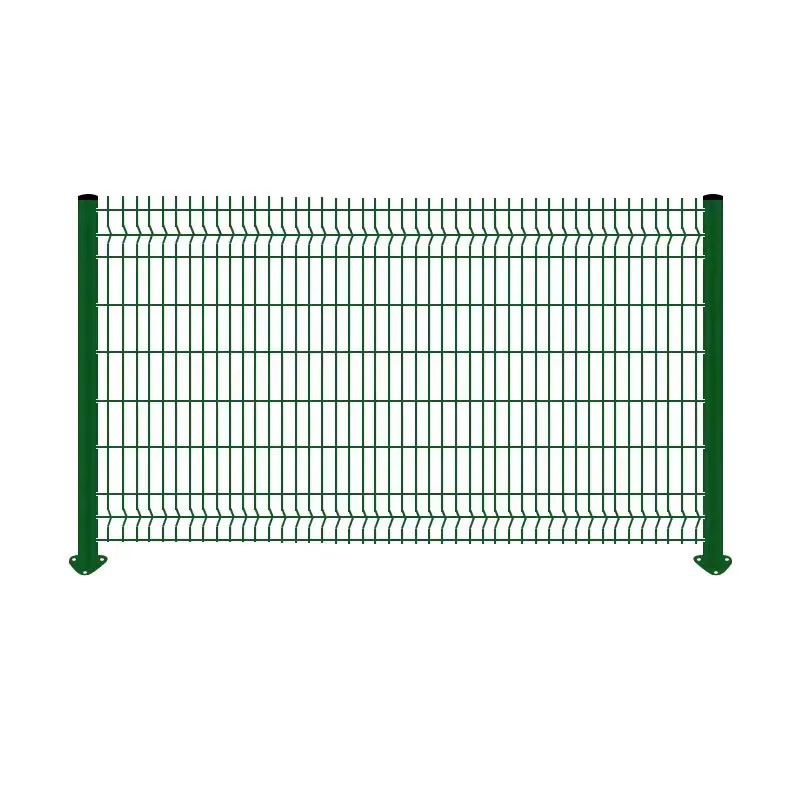

Peach-Shaped Column Guardrail 3d Wire Mesh Fence

Material: Low carbon steel wire Galvanized steel wire Stainless steel wire

Cross-sectional shape：Peach/Y-shaped

Wire diameter: 400-600MM

Mesh size: Height: 1.0m–2.5m<br>- Length: 2.0m–3.0m (standard), customizable

Usage:Applicable to municipalities, gardens, residential areas and other places where both safety and landscape are required

Send Email Download

Product Description

Peach-shaped column guardrail is a metal fence system with peach-shaped (Y-shaped) columns as the core support structure. It is named because the top of the column is shaped like a heart or Y-shaped bifurcated design. This guardrail combines aesthetics and functionality, and has the characteristics of anti-climbing, impact resistance and visual transparency. It is widely used in municipal, garden, residential areas and other places where safety and landscape are required.

Product Specification

Column material	Low carbon steel (Q235), galvanized steel, stainless steel (304/316)
Column shape	Peach/Y-shaped, double fork at top (fork width 80–150mm)
Column size	Height: 1.5m, 1.8m, 2.0m, 2.5m, 3.0m (customizable)Wall thickness: 1.5mm–3.0mm (conventional 2.0mm)Section size: 50×70mm, 60×80mm (square tube or round tube)
surface treatment	Hot-dip galvanizing (zinc layer ≥ 60μm) Electrostatic spraying (thickness 0.8-1.2mm, optional colors: dark green, white, black, gray) Stainless steel original color (no additional treatment required)
Mesh material	Carbon steel wire, PVC coated steel wire, stainless steel wire
Mesh Hole	Rectangle: 50×100mm, 50×200mm, 60×150mm Diamond: 40×40mm, 50×50mm (customized)
Mesh Panel Size	Height: 1.0m–2.5m (matching column height) Length: 2.0m–3.0m (standard)
Mesh Wire Gauge	4.0MM-6.0MM
Connection method	The mesh is directly inserted into the Y-slot of the column, or fixed with bolts
Anti-corrosion level	Hot dip galvanizing + plastic spraying Service life: 10-15 years (normal outdoor environment)

Accessories and installation parameters

Fixed method	Embedded type: burial depth 30-50cm (soil ground) Flange: base size 200×200×8mm (cement ground)
rain hat	Stainless steel or galvanized material
Reinforced beams	Optional transverse reinforcement beam (40×40mm square tube) for heightening guardrail (recommended for heights ≥2.5m)

Product Features

The peach-shaped column guardrail has "strong anti-climbing performance, efficient installation, beautiful and durable" as its core competitiveness, and is particularly suitable for scenes that require both safety and landscape coordination. Its unique Y-shaped column design and modular structure make it an ideal choice to replace traditional walls in the fields of municipal, residential, and transportation. At the same time, through customized services, it can meet all-round needs from basic protection to high-level security.

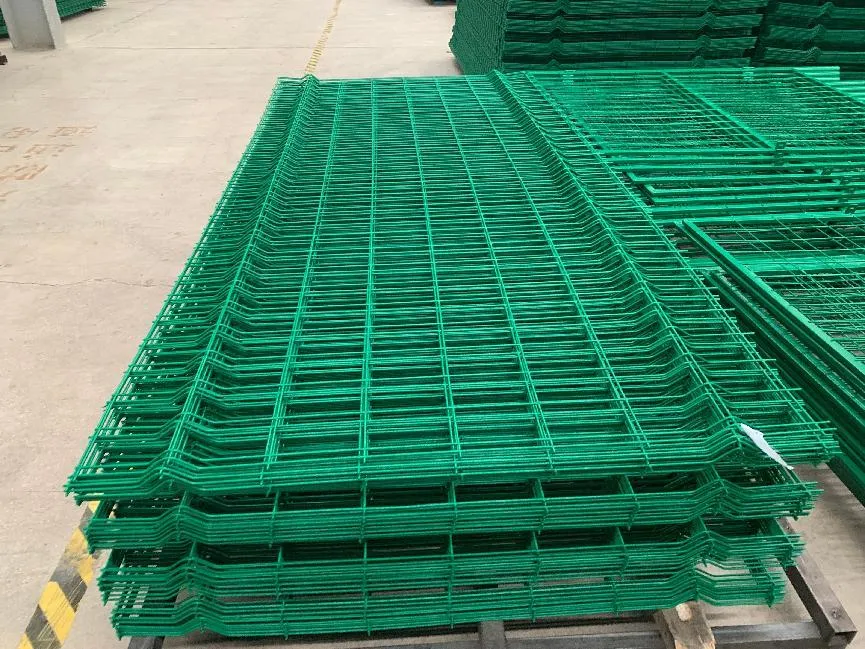

Product package

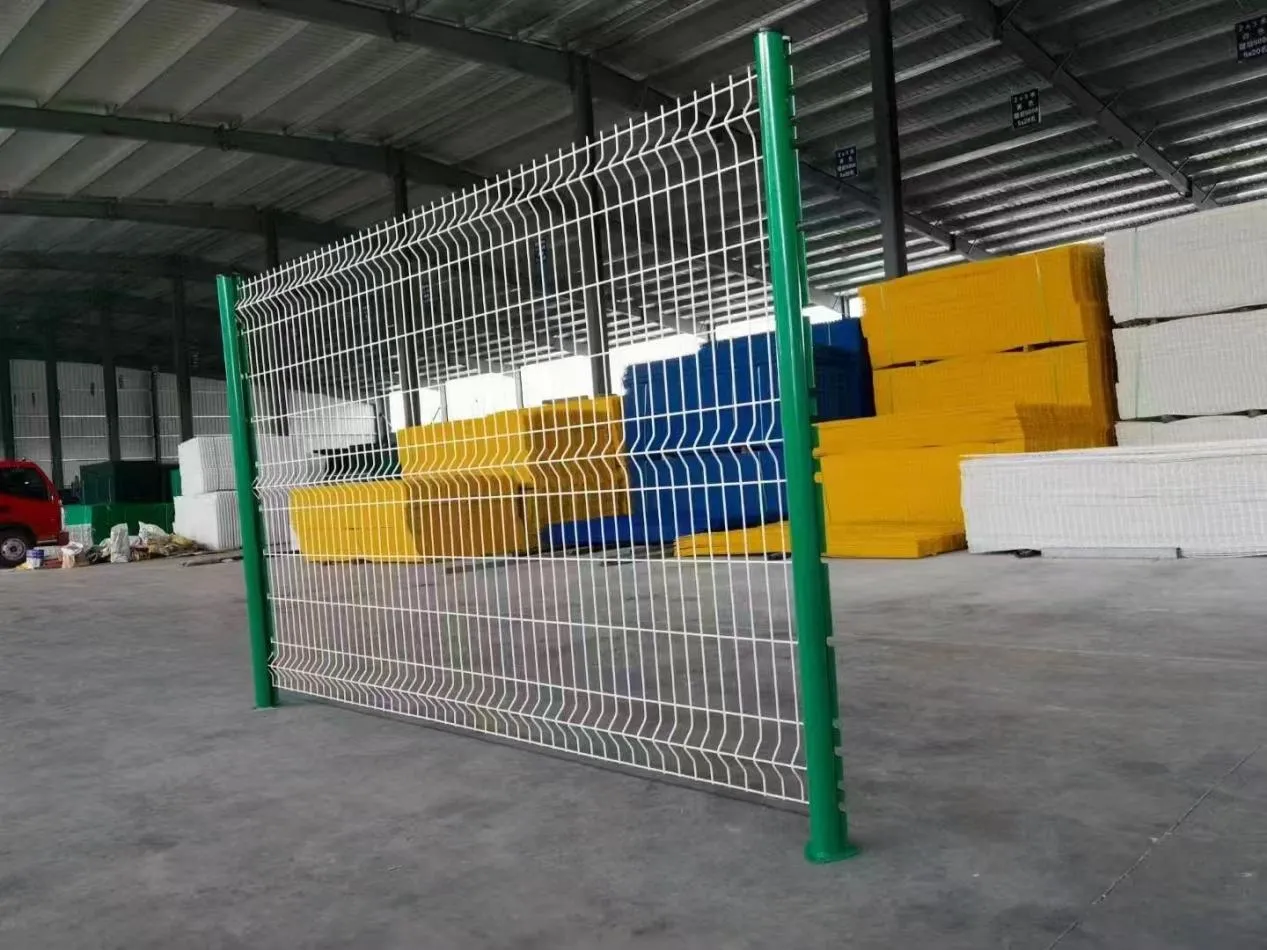

Our stock

3D Wire Mesh Fence FAQ

What is a peach-shaped column guardrail 3D wire mesh fence?

This fence combines a V-bend (3D) welded wire mesh panel with uniquely designed "peach-shaped" posts. It provides a modern look with high structural strength and is commonly used for residential, commercial, and public perimeter protection.

What are the advantages of the peach-shaped post design?

The peach-shaped post allows for easy panel attachment without the need for additional clamps. It enhances installation speed, improves fence stability, and provides a sleek, aesthetically pleasing appearance.

What materials and surface treatments are used?

The fence is made from low-carbon steel wire or galvanized steel wire, with surface finishes such as hot-dip galvanizing or powder coating. These treatments ensure strong corrosion resistance and long-term outdoor durability.

Where is this type of fence commonly used?

It is widely used for schools, parks, private properties, factories, highways, and residential communities. Its modern appearance and strong protective function make it suitable for both security and decorative use.

Can the fence be customized?

Yes. Mesh size, wire diameter, height, panel length, post color, and accessories (like anti-climb tops or signage) can all be customized to meet specific project needs or regional standards.

Secure Fit, Distinct Form

The Peach-Shaped Column Guardrail 3D Wire Mesh Fence combines a visually appealing structure with practical stability. Its peach-shaped post profile ensures a stronger grip on the mesh panels, enhancing wind resistance and installation firmness. The V-shaped bending design of the mesh increases strength while maintaining a clean, modern appearance.

Customization from Structure to Coating

From mesh size, wire thickness, panel height to post style and surface finish, every part of your Peach-Shaped Column Guardrail 3D Wire Mesh Fence can be tailored. Choose between galvanizing, powder coating, or dual-layer treatments to adapt the product to your environment. Just let us know your application scenario, and our team will deliver a solution that fits your project and budget perfectly.

Durable Fence for Varied Environments

Our Peach-Shaped Column Guardrail 3D Wire Mesh Fence is built to last. Using high-tensile steel wire and anti-corrosion coatings, it remains strong and sleek through years of outdoor exposure. Whether you’re securing residential communities, public parks, or industrial facilities, this fencing system balances aesthetics with strength and offers a reliable perimeter solution.
