Are you a manufacturer or trader?

We are a professional manufacturer of wire mesh prodcuts. Anping County Jinzehong Wire Mesh Products Co., Ltd. was established in 1968 and has grown into a comprehensive enterprise integrating production, R&D, and sales.

What can you buy from us?

We provide stainless steel mesh, welded mesh, steel grating, woven mesh, guardrail mesh, zinc steel grid, perforated mesh, construction mesh, wire mesh, and many more.

What is your delivery time?

We keep sufficient inventory, and the delivery time for stock materials is one week. Special customized products will provide an accurate delivery time based on quantity and technical requirements.

How do you ensure product quality?

We pride ourselves on providing products that guarantee the highest quality. Jinzehong Wire Mesh Products Co., Ltd. always adheres to the principle of quality-oriented and customer-oriented; it delivers goods only after strict quality inspection.

Can you provide samples?

Yes, we would like to provide samples for your testing.

Highway and Railway Fence

Material:Low carbon steel, Stainless steel

Surface treatment:Plastic spraying Plastic dipping Galvanized

mesh: 9×17MM 50×150MM 60×120MM 80×160MM 75×150MM 50×200MM

Regular height: 1.2M 1.5M 1.8M 2M

regular length：3M

Usage:Suitable for isolation and protection of roads, railways, airports, bridges, municipal green spaces, farms, orchards, breeding farms, stadiums, etc.

Send Email Download

Product Description

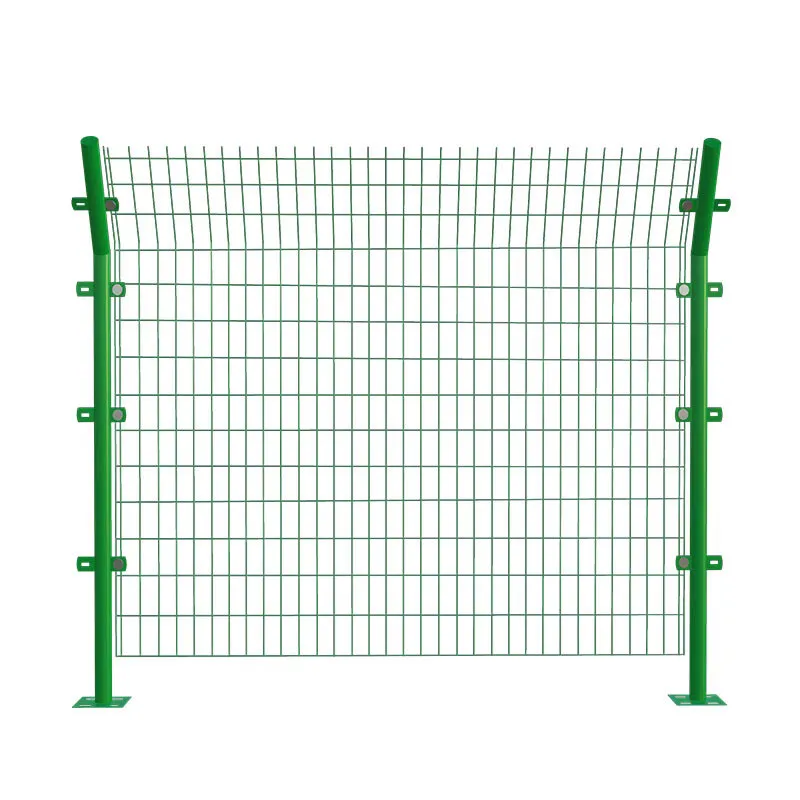

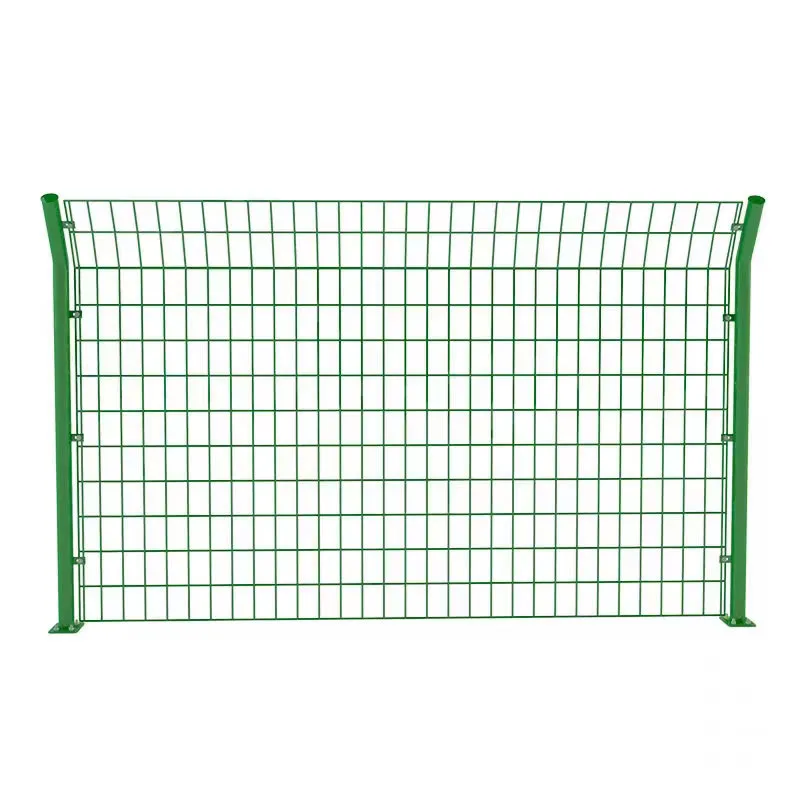

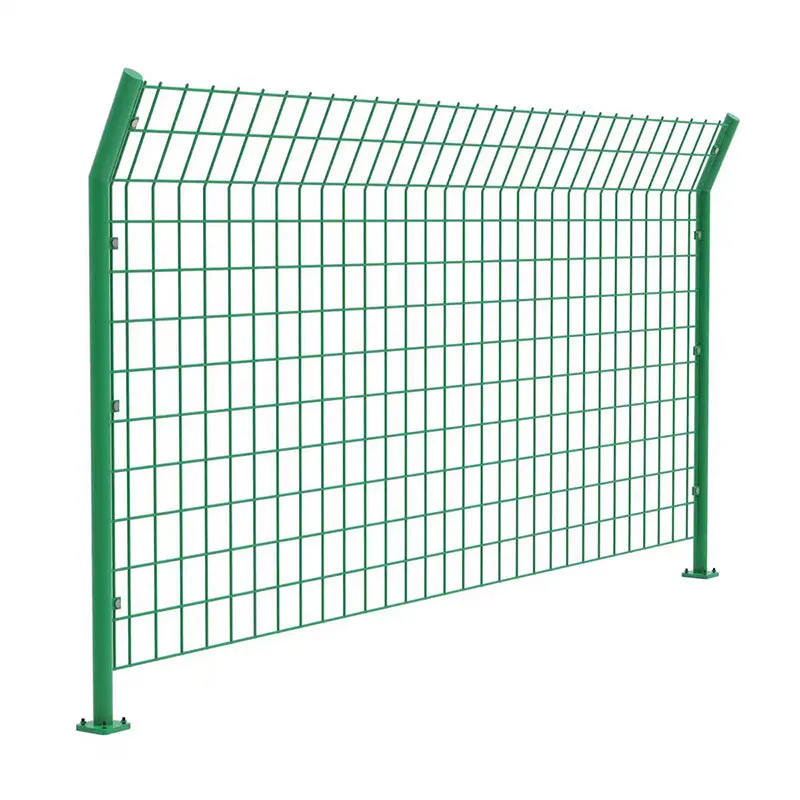

Double-sided wire fence is a mesh fence made of low-carbon steel wire. It is named because both sides of the mesh have reinforcing wire (frame). This structural design enhances the stability of the fence, while taking into account economic practicality and easy installation. It is widely used in various isolation and protection projects.

Product Specification

Material	Low carbon steel wire (Q195/Q235), cold drawn wire, galvanized steel wire
Wire diameter	3.5mm-6.0mm
Mesh size	Mainly rectangularholes: 50×150mm, 60×120mm, 75×150mm, 80×160mm, 90×170mm, 50×200mm
Grid size	Height: 1.2m, 1.5m, 1.8m, 2.0m, 2.4m (customizable)<br>- Length: 2m, 3m (standard), up to 6m
Column specifications	Material: round steel tube (diameter 48mm, 60mm) or square tube (50×50mm)<br>- Wall thickness: 1.0mm–2.5mm<br>- Height: 1.5m–3.0m (matching with mesh)
Surface treatment	Plastic dipping (thickness 0.8-1.2mm), plastic spraying, hot-dip galvanizing (zinc layer ≥ 60μm), cold-dip galvanizing
color	Grass green, dark green, white, yellow, black, blue, etc. (plastic dipping/spraying optional)
tensile strength	≥350MPa (low carbon steel wire)
Anti-corrosion level	Hot-dip galvanizing + plastic dipping can reach a service life of 8-15 years
Impact resistance	Can withstand general external impact (such as collisions with pedestrians and small vehicles). The specific load-bearing capacity depends on the wire diameter and column configuration.
Whether to support customization	support

Installation matching specifications

Connection method	Snap-on connection (quick installation) or anti-theft bolt fixing
Column spacing	Standard spacing 2.5m-3m (adjusted according to mesh length)
rain hat	Galvanized/plastic-coated steel caps to prevent water accumulation in the columns
Flange	Used for installation on bridges and cement floors, thickness ≥ 4mm (bottom of fixed column)

Recommended specifications for applicable scenarios

road/rail	Wire diameter ≥5.0mm, mesh size ≤80×160mm, column 60mm×2.5mm, hot dip galvanizing + plastic dipping
Farm/Orchard	Wire diameter 4.0-4.5mm, mesh 50×150mm, column 48mm×1.5mm, green plastic dip
greening	Wire diameter 3.5-4.0mm, mesh size 60×120mm, white/dark green plastic spray
stadium	Net height 2.0-2.4m, wire diameter 5.0mm, anti-climbing net installed

Product Features

Highway and railway guardrails are widely used in transportation, agriculture, municipal administration and other fields with "high strength, low cost, easy installation and long life" as their core competitiveness. They are especially suitable for protection projects with limited budget but need to be deployed quickly and adapt to complex terrain. Its modular design and diversified customization options can meet multi-level needs from basic isolation to high-security protection.

Product package

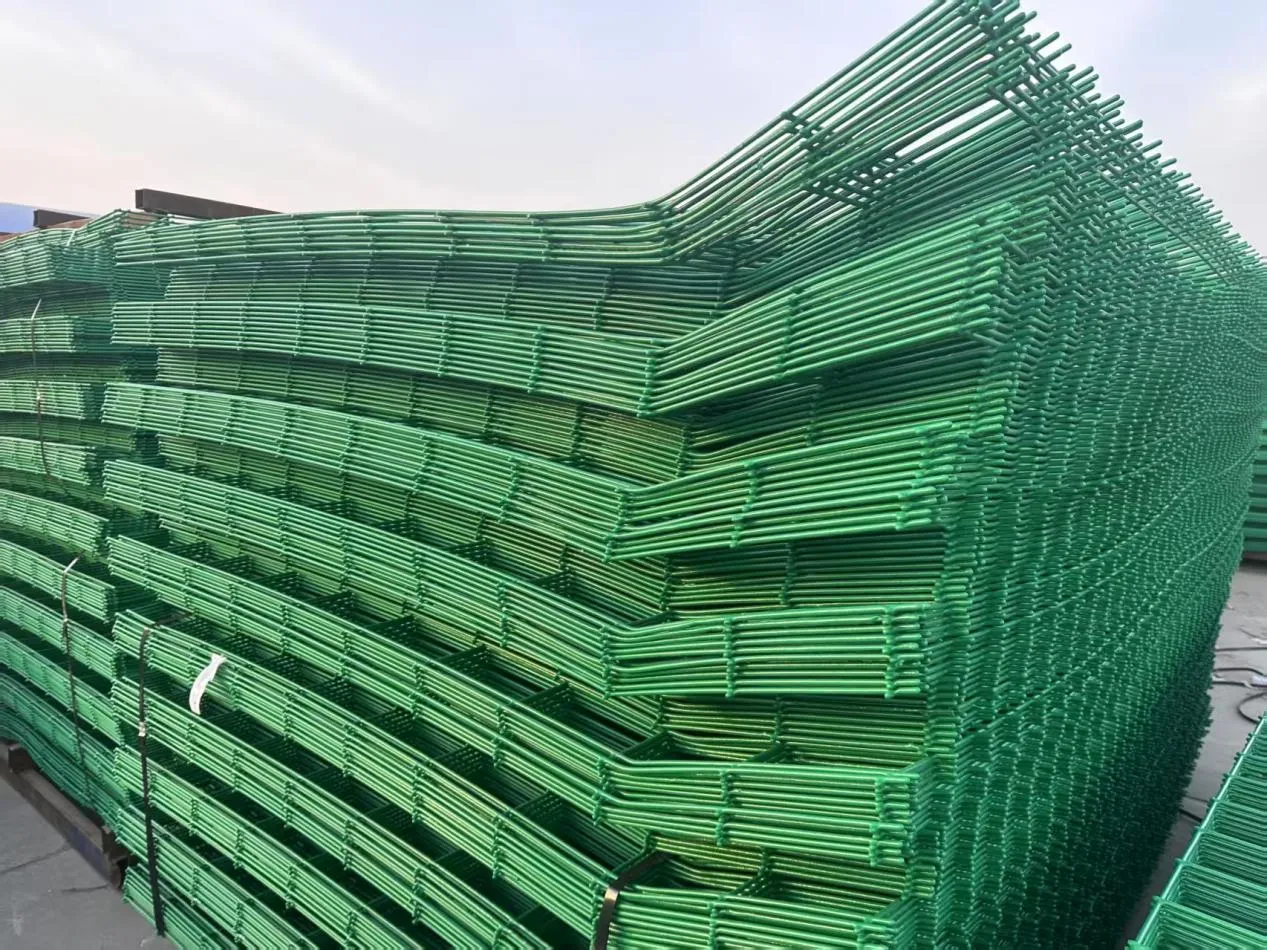

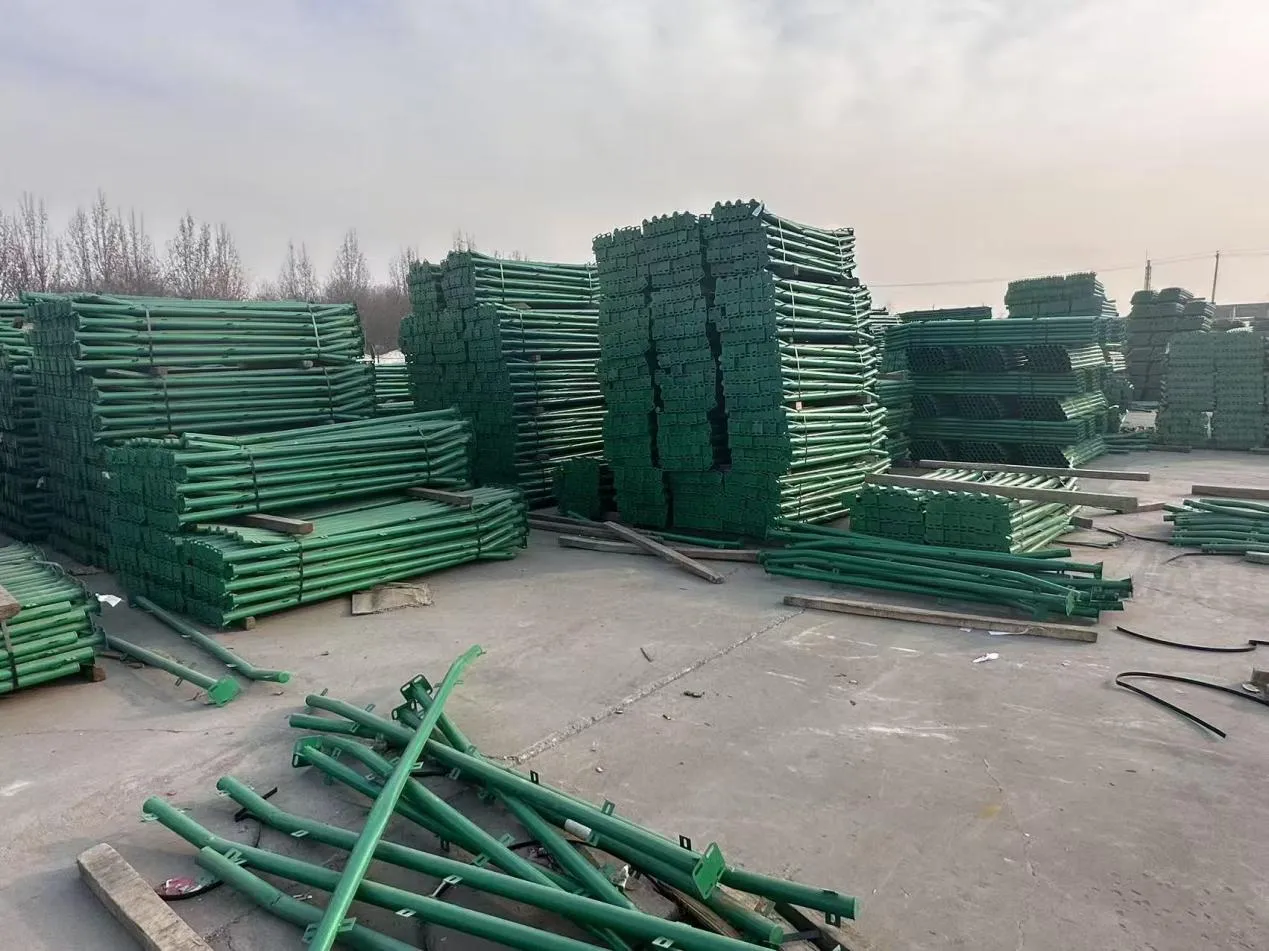

Our stock

Highway and Railway Fence FAQ

What is a highway and railway fence?

A highway and railway fence is a protective barrier installed along roads, highways, and railway tracks to prevent unauthorized access, enhance safety, and reduce the risk of accidents involving pedestrians, animals, or vehicles.

What materials are commonly used for these fences?

These fences are typically made from high-strength galvanized steel wire, welded mesh panels, or chain link mesh with anti-corrosion surface treatments such as PVC coating or hot-dip galvanizing for long-term outdoor durability.

What are the main features of highway and railway fences?

They are weather-resistant, impact-resistant, anti-rust, and designed for quick installation. Some models come with V-shaped reinforcements, Y-posts for added height, or barbed wire on top for enhanced security.

Are the fences customizable for different projects?

Yes. We offer custom heights, mesh sizes, panel lengths, colors, and post designs to match project specifications and regional standards. Custom logos and reflective warning signs can also be added.

What standards or regulations do these fences meet?

Our highway and railway fences are manufactured to comply with transportation safety standards and infrastructure requirements in various countries. We also provide technical drawings and certificates for government or civil construction projects.

Structure and Finish

A wide variety of panel types, posts, and mounting solutions ensures secure and efficient installation of Highway and Railway Fences along diverse terrains. Engineered for durability, these fences combine high-tensile welded mesh with anti-rust galvanized or powder-coated finishes, offering strong resistance to weather, impact, and tampering—perfect for long-term infrastructure projects.

Manufacturing Technologies

From wire thickness, mesh aperture, fence height to coating color and post style, every Highway and Railway Fence can be tailored for specific environments and regulatory requirements. Simply provide your project specs or design ideas—our technical team will evaluate and respond quickly with tailored solutions. We offer CAD support and prototypes to ensure the design is both compliant and functional for high-traffic or high-risk zones.

Every Fence, Safety First

Safety and reliability are at the core of every Highway and Railway Fence we produce. Using heavy-duty materials, advanced welding, and corrosion-resistant treatments, we manufacture fences that withstand harsh climates and external impacts. Whether it’s for highway medians, railway perimeters, or pedestrian barriers, our fencing delivers high visibility, low maintenance, and consistent protection where it’s needed most.
